Raw XML Module Built-In Script

All of the UI Fragment built-in scripts produce XML that is similar to, but not interchangeable with, XML found in a plugin descriptor. You will notice that, for usability reasons, the forms do not provide all the possible configuration elements available in plugins. For example, the web item built-in script form does not give you the option to provide a tooltip for the web item link or a velocity context provider.

You can work around this limitation by using the XML provided by the other UI Fragment built-in scripts and then adding to it using the raw XML module built-in script:

Go to ScriptRunner → UI Fragments and select a fragment that's closest to the Raw XML module fragment that you want to create (for example a Web item or a Web panel).
Fill out the UI Fragment. Make sure the fragment has as many of the details you require as possible.
Select Preview to get the required XML.
Warning: Do not select the Add button.
Copy the XML.
Go to Script Runner → UI Fragments → RAW XML module and paste in the raw XML you copied in the step above.
Optional: Give your fragment a name.
Make modifications to the raw XML as required.
Select Add.

Examples

As a simple example, we want to add a button to the top navigation bar, as described on our Fragments Tutorial page. We want to do more than what this tutorial describes as we want to also add a tooltip to the button. To do so we would do the following:

Follow steps 1 to 11 for the Create a simple web item tutorial.
Select Preview.
Warning: Do not select the Add button.
Copy the raw XML that is provided.
Go to ScriptRunner → UI Fragments → Raw XML module and paste in the raw XML you copied in the step above.

Add the following line to your script:

<tooltip>Click here to go to the Great Adventure Website</tooltip>

So our final script would look as follows:

Tip: If you always want this fragment to display you can remove the condition block.

<web-item key='great-adventure-web' name='ScriptRunner generated web item - great-adventure-web' section='system.top.navigation.bar' weight='110'>
    <label>Great Adventure Website</label>
    <condition class='com.onresolve.scriptrunner.fragments.JiraScriptRunnerCondition'>
        <param name='£trackingParameters' value='{"scriptName":"com.onresolve.scriptrunner.canned.jira.fragments.CustomWebItem"}' />
        <param name='£fragmentParameters' value='{"id":"820fe068-76fc-473b-9ce0-311055398a9d"}' />
        <param name='conditionConfig'><![CDATA[{"parameters":{},"script":"true","scriptPath":null}]]></param>
    </condition>
    <styleClass> great-adventure-web </styleClass>
    <link linkId='great-adventure-web'>https://www.adaptavist.com/?_=1</link>
    <tooltip>Click here to go to the Great Adventure Website</tooltip>
</web-item>

Select Add.

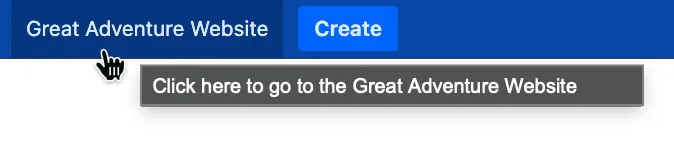

The tooltip appears as follows:

Use multiple items

You can use this built-in script to make multiple modifications that belong as a single unit in a single script, which you can enable and disable at once.

The XML below allows you to create the following structure, which consists of:

A drop-down menu in the top navigation bar
A web section activated by that menu item, which has a heading
Two simple web items

<web-item key='toppy' name='ScriptRunner generated web item - toppy' section='system.top.navigation.bar' weight='70'>
    <label>Toppy</label>
    <link linkId='toppy'></link>
</web-item>

<web-section key='top-menu-section' name='ScriptRunner generated web item - top-menu-section' location='toppy' weight='70'>
    <label>Subby</label>
    <param name='lazy' value='true' />
</web-section>

<web-item key='x-other' name='ScriptRunner generated web item - x-other' section='toppy/top-menu-section' weight='1'>
    <label>Sub-menu item</label>
    <link linkId='x-other'>/</link>
</web-item>

<web-item key='y-other' name='ScriptRunner generated web item - y-other' section='toppy/top-menu-section' weight='1'>
    <label>Another menu item</label>
    <link linkId='y-other'>/</link>
</web-item>

Note: You will note that the above XML is not technically correct as it does not have a root element, but in this case, a root element will be automatically added for you.
