Web Item Locations

Web item locations are where you can put links or buttons. Web item fragment locations can typically be found in menus, so you can add more options within that menu. There are also web item fragment locations you can use to add buttons to pages. For more information, read up on web items in the Atlassian documentation.

Note: We have provided the UI fragments below each image for you to copy and paste (if required).

Main Jira menus

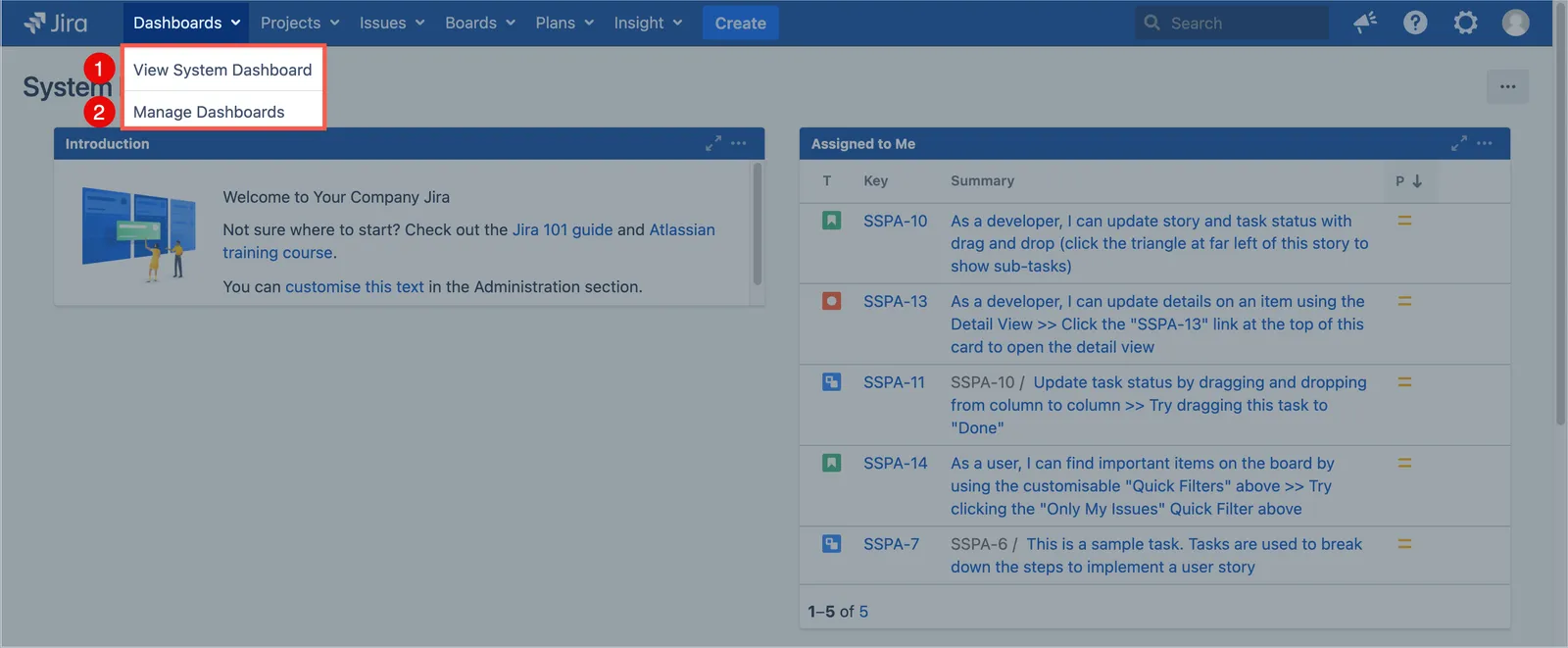

Dashboad menu

The following locations are referenced in the image above:
  1. home_link/dashboard_link_main
  2. home_link/dashboard_link_manage

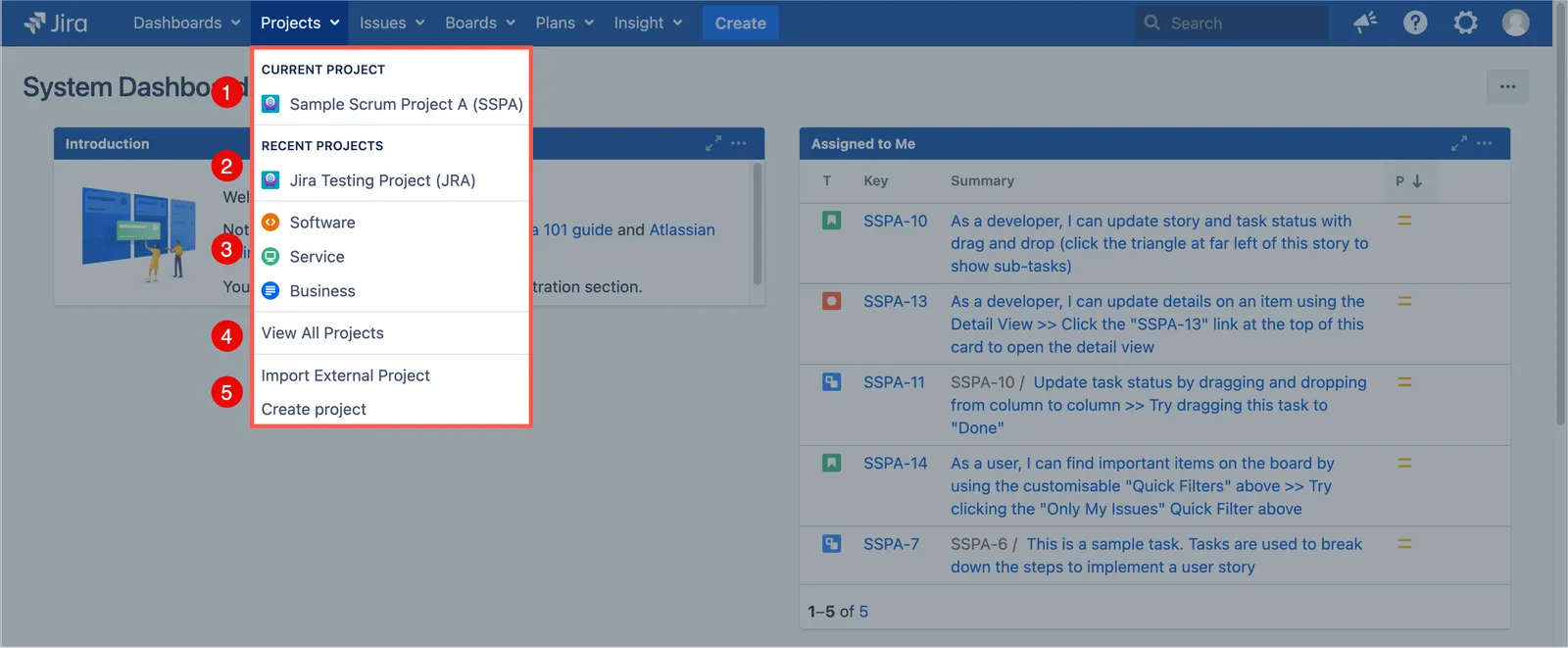

Projects menu

The following locations are referenced in the image above:
  1. browse_link/project_current
  2. browse_link/project_history_main
  3. browse_link/project_types_main
  4. browse_link/project_view_all
  5. browse_link/project_new

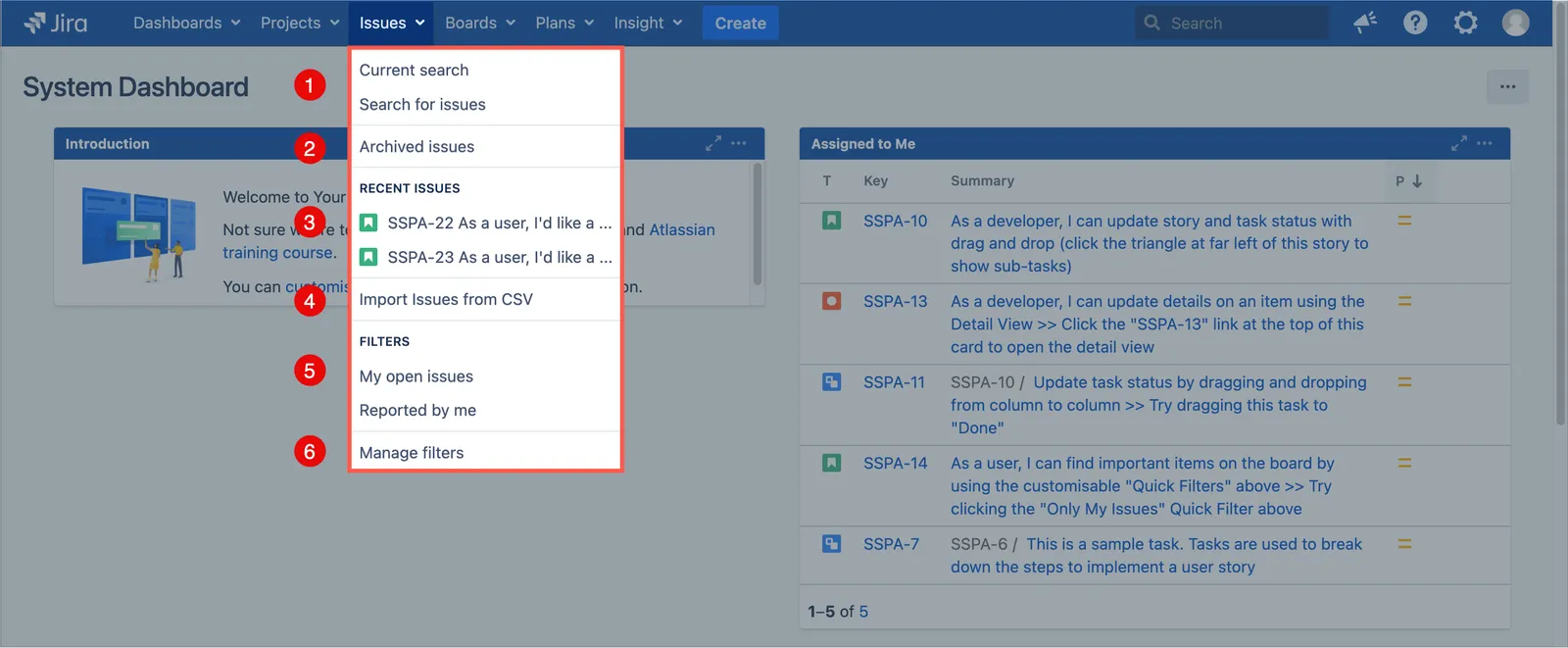

Issues menu

The following locations are referenced in the image above:
  1. find_link/issues_new
  2. find_link/archived_issues
  3. find_link/issues_history_main
  4. find_link/bulk_create_section
  5. find_link/issues_filter_main
  6. find_link/issues_manage_filters

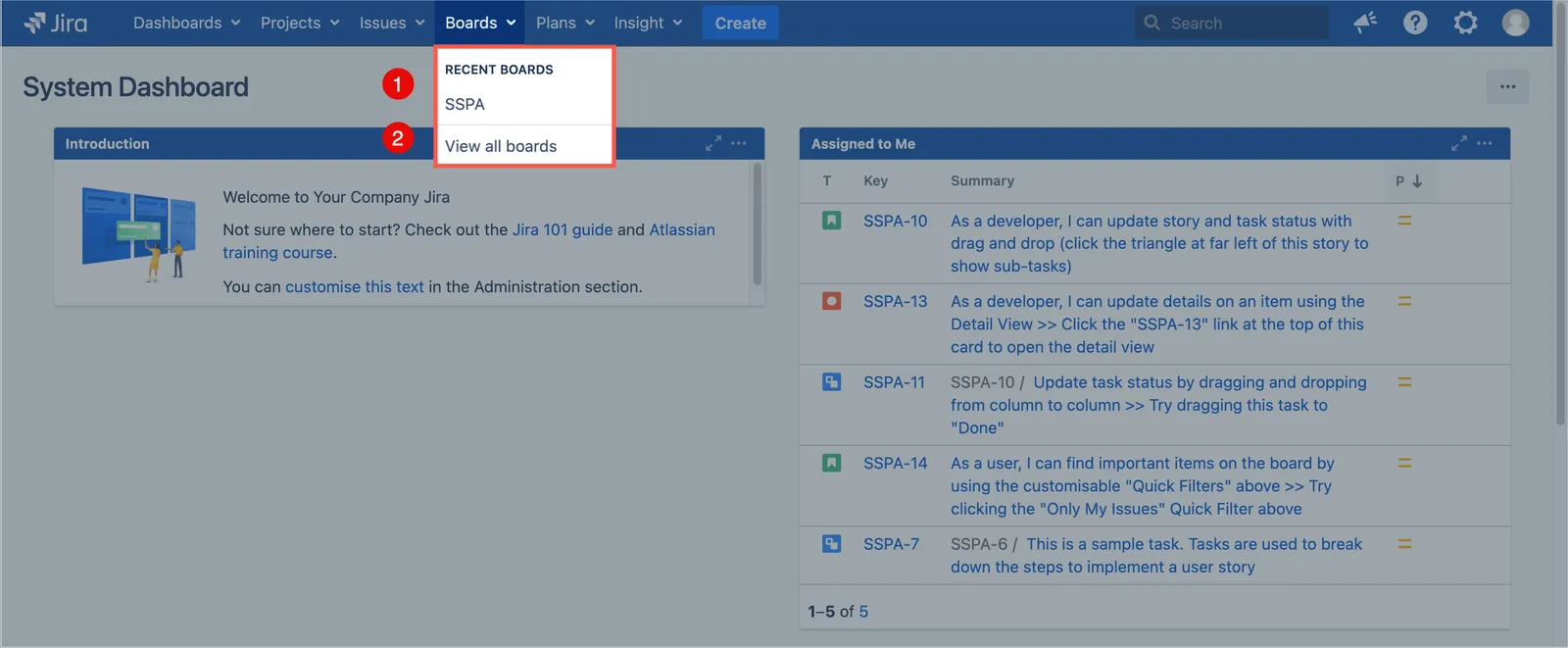

Boards menu

The following locations are referenced in the image above:
  1. greenhopper_menu/greenhopper_menu_dropdown
  2. greenhopper_menu/greenhopper_menu_dropdown_recent

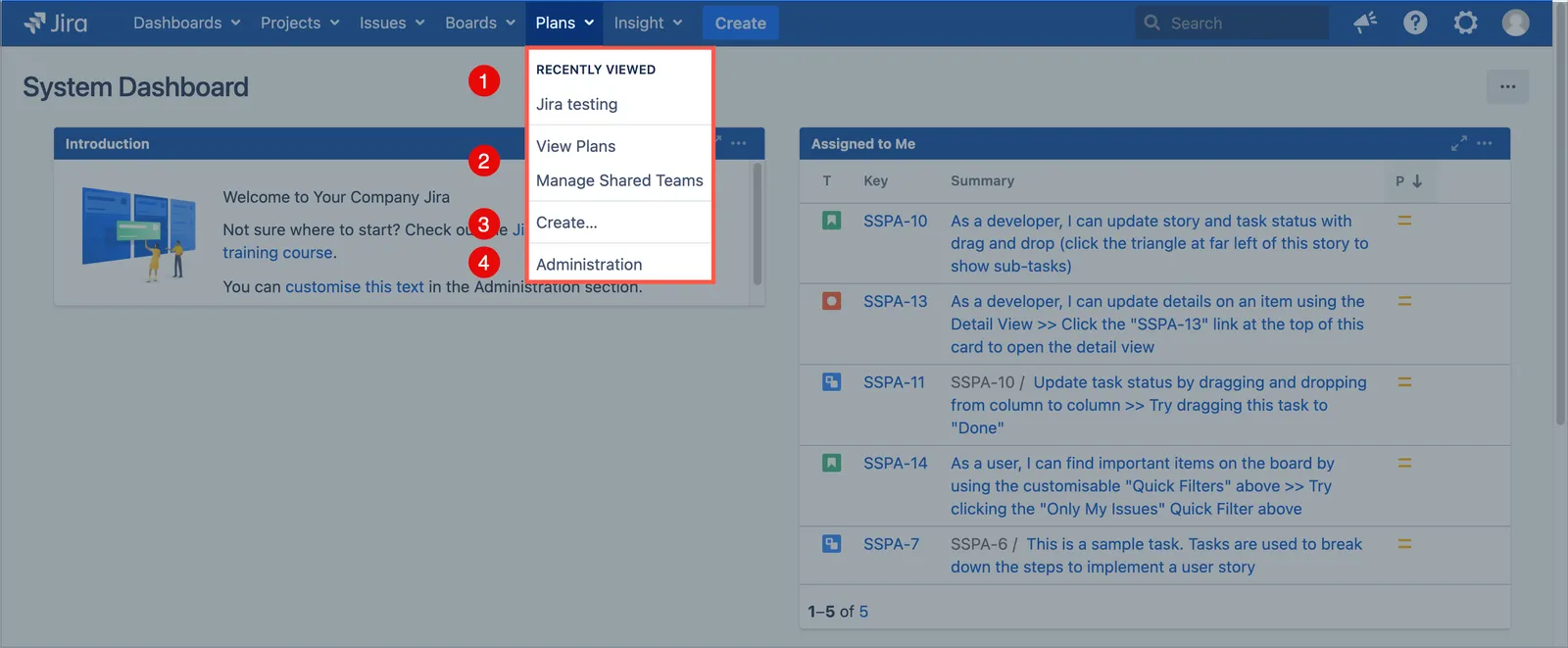

Plans menu

The following locations are referenced in the image above:
  1. plugins-jira-webitem-main/plugins-jira-websection-recentlyviewed
  2. plugins-jira-webitem-main/plugins-jira-websection-manage-plans
  3. plugins-jira-webitem-main/plugins-jira-websection-create
  4. plugins-jira-webitem-main/rm-roadmaps-websection-admindocs

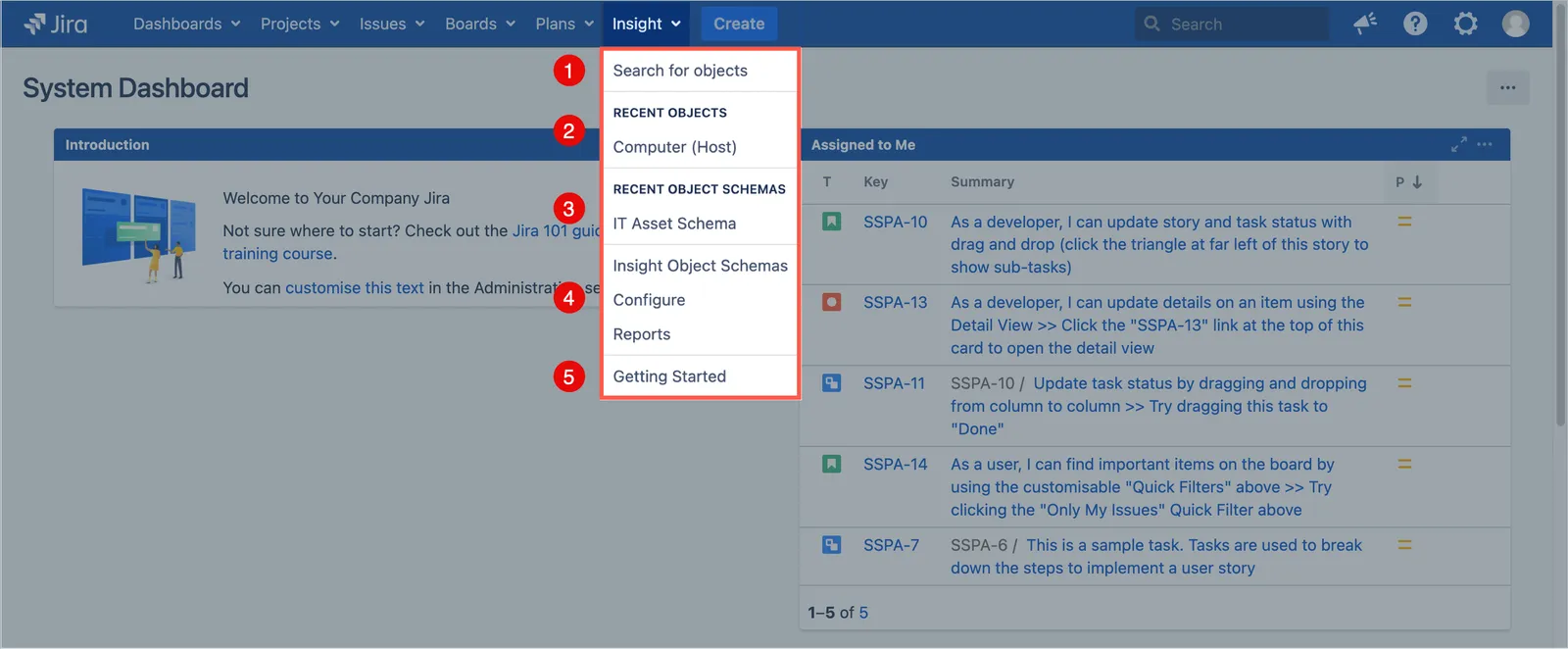

Insights/Assets menu

The following locations are referenced in the image above:
  1. rlabs_insight_topmenu_link/rlabs_iam_menu_section
  2. rlabs_insight_topmenu_link/rlabs_insight_recent_object_section
  3. rlabs_insight_topmenu_link/rlabs_insight_recent_objectschema_section
  4. rlabs_insight_topmenu_link/rlabs_insight_general_section
  5. rlabs_insight_topmenu_link/rlabs_insight_info_section

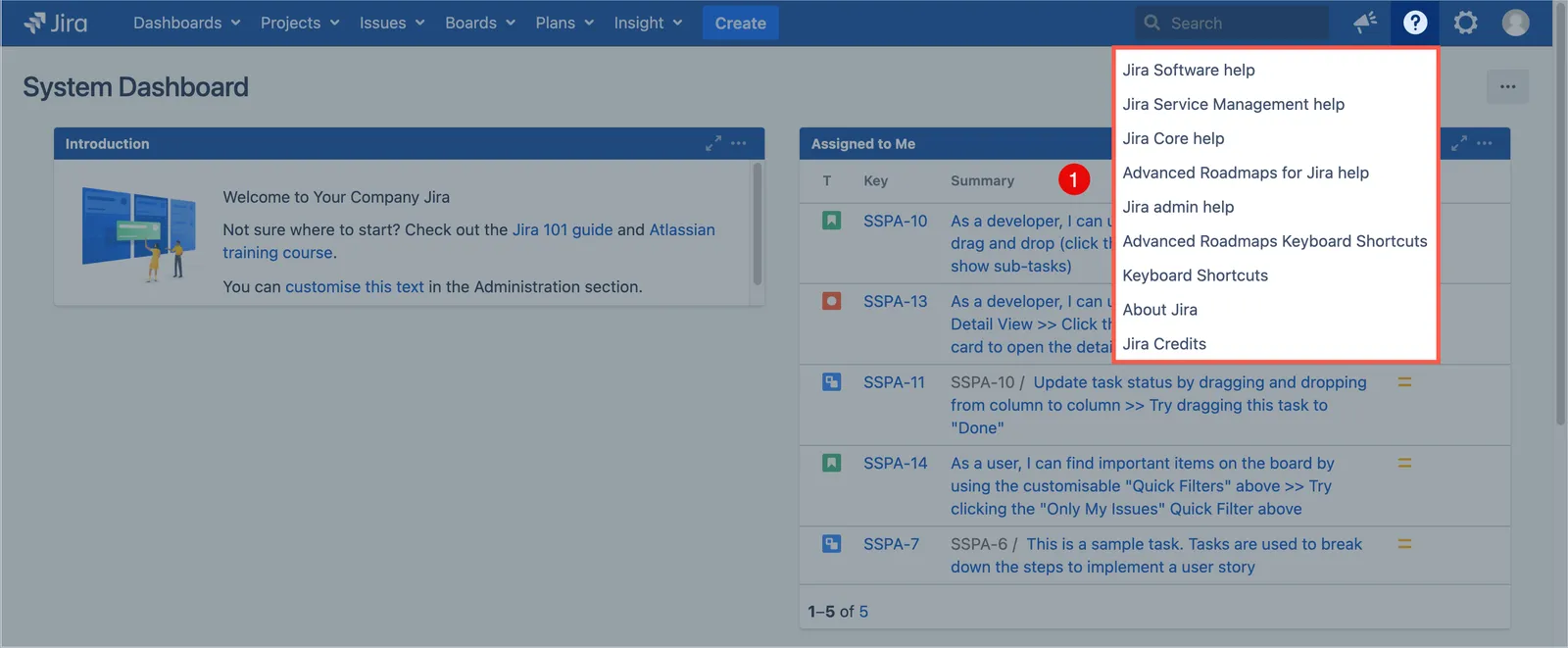

Help menu

The following locations are referenced in the image above:
  1. system.user.options/jira-help

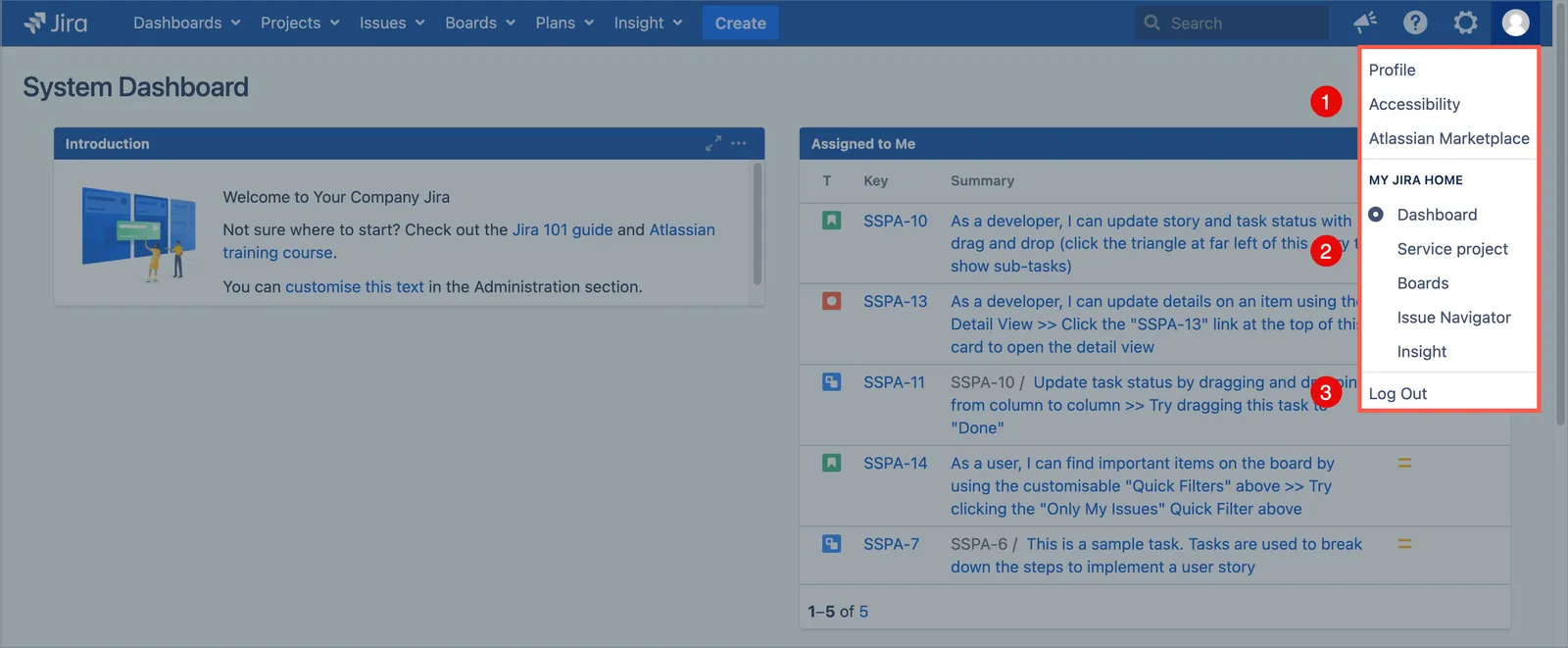

Profile menu

The following locations are referenced in the image above:
  1. system.user.options/personal
  2. system.user.options/system
  3. system.user.options/set_my_jira_home

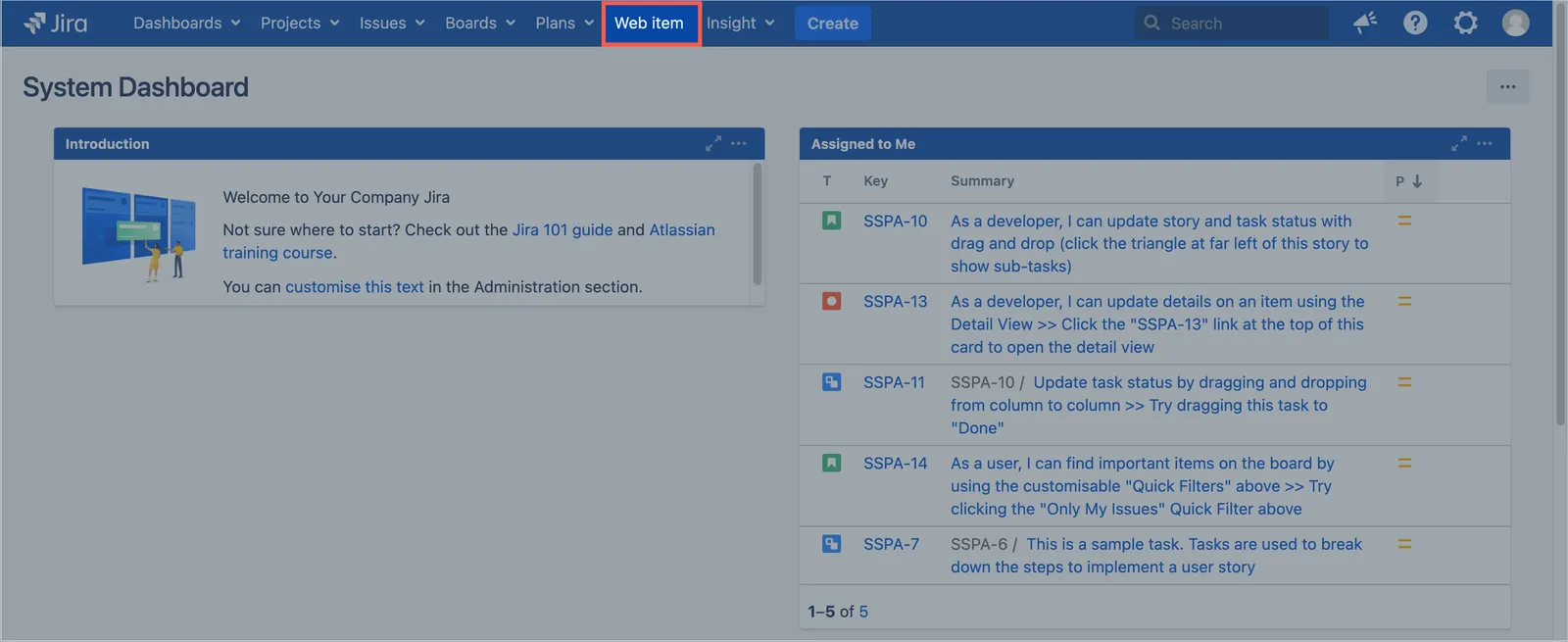

Jira menu button

You can add an additional link/button to Jiras main menu using the following fragment location ( system.top.navigation.bar):

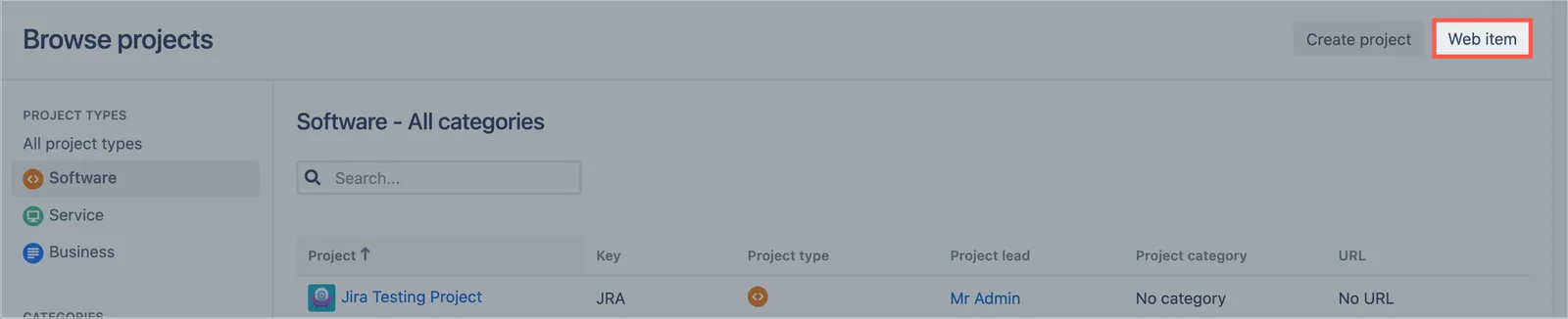

Browse projects page

You can add a link/button to the Browse projects page using the following fragment location ( system.browse.projects.operations):

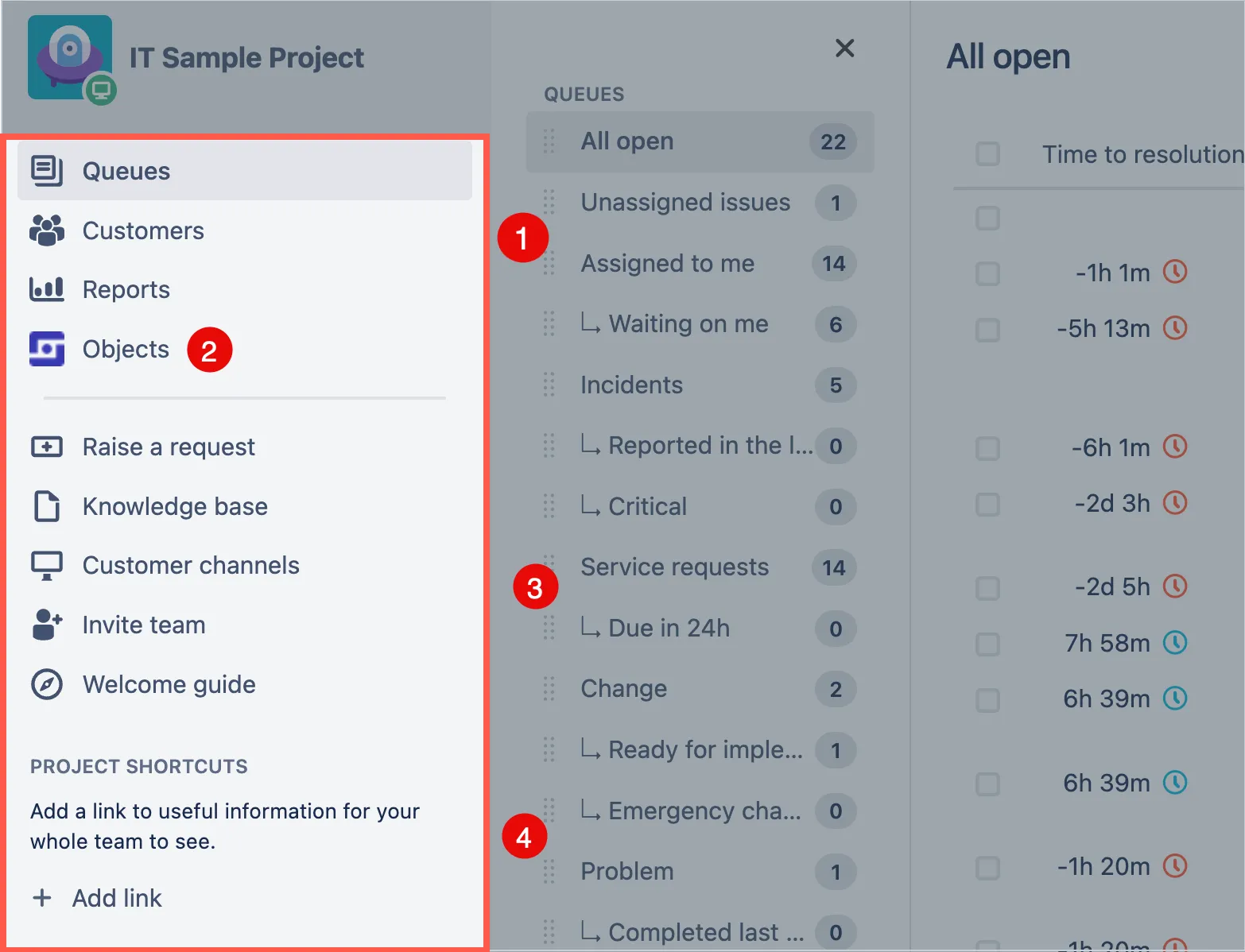

Project navigation bar

The following screenshot displays the web item locations you can find in the project navigation bar.

The following locations are referenced in the image above:
  1. jira.project.sidebar.navigation
  2. jira.project.sidebar.plugins.navigation
  3. servicedesk.project.sidebar.navigation.secondary (SERVICE DESK ONLY)
  4. jira.project.sidebar.settings.navigation

Issue page

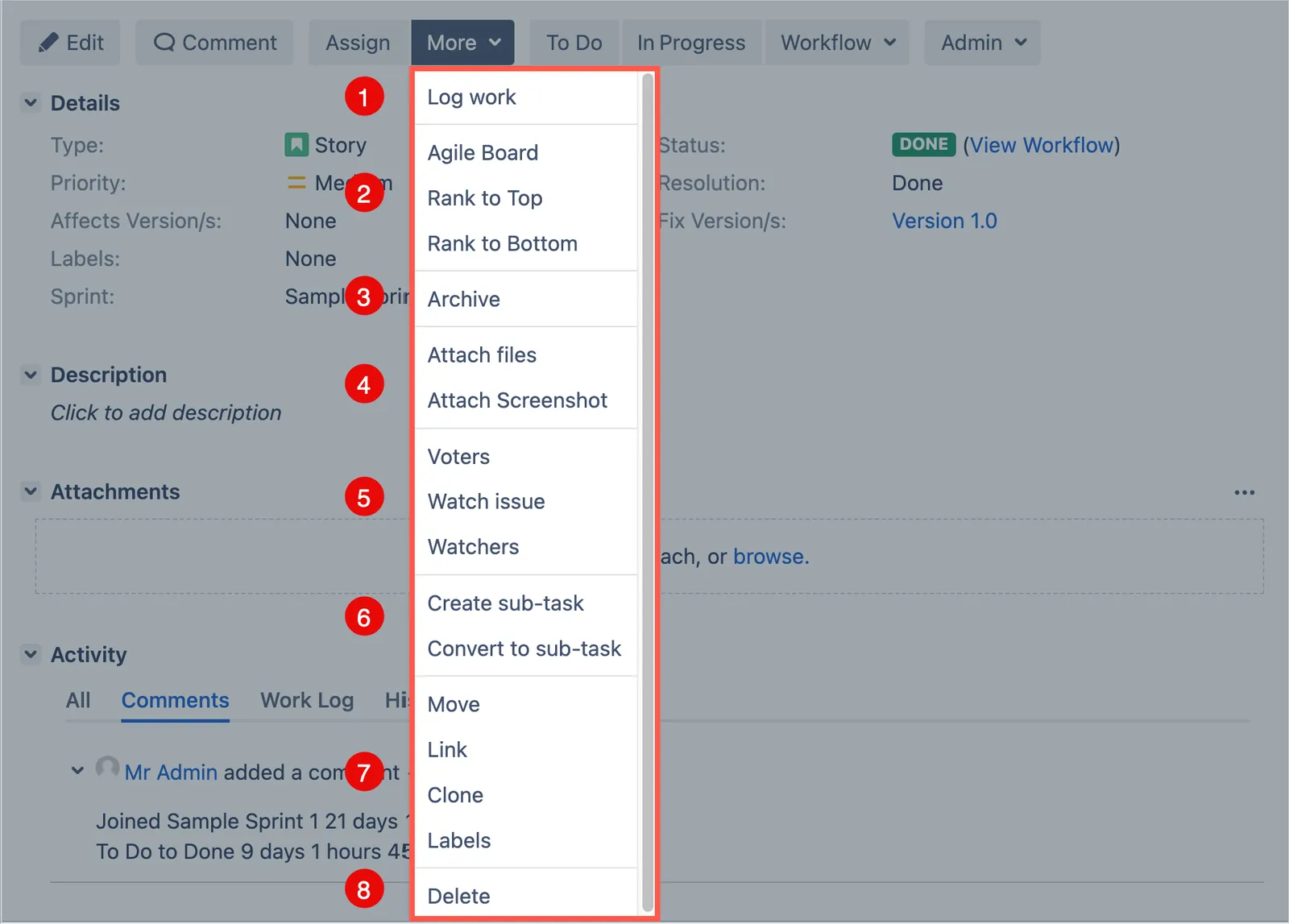

More

The following locations are referenced in the image above:
  1. operations-work
  2. greenhopper_issue_dropdown
  3. operations-archive
  4. operations-attachments
  5. operations-voteswatchers
  6. operations-subtasks
  7. operations-operations
  8. operations-delete
Note: In addition to the fragments listed above the following fragment location is available to add web items to the top and bottom of the More menu:
  • Item:operations-top-level
  • Item:operations-manual-triggers

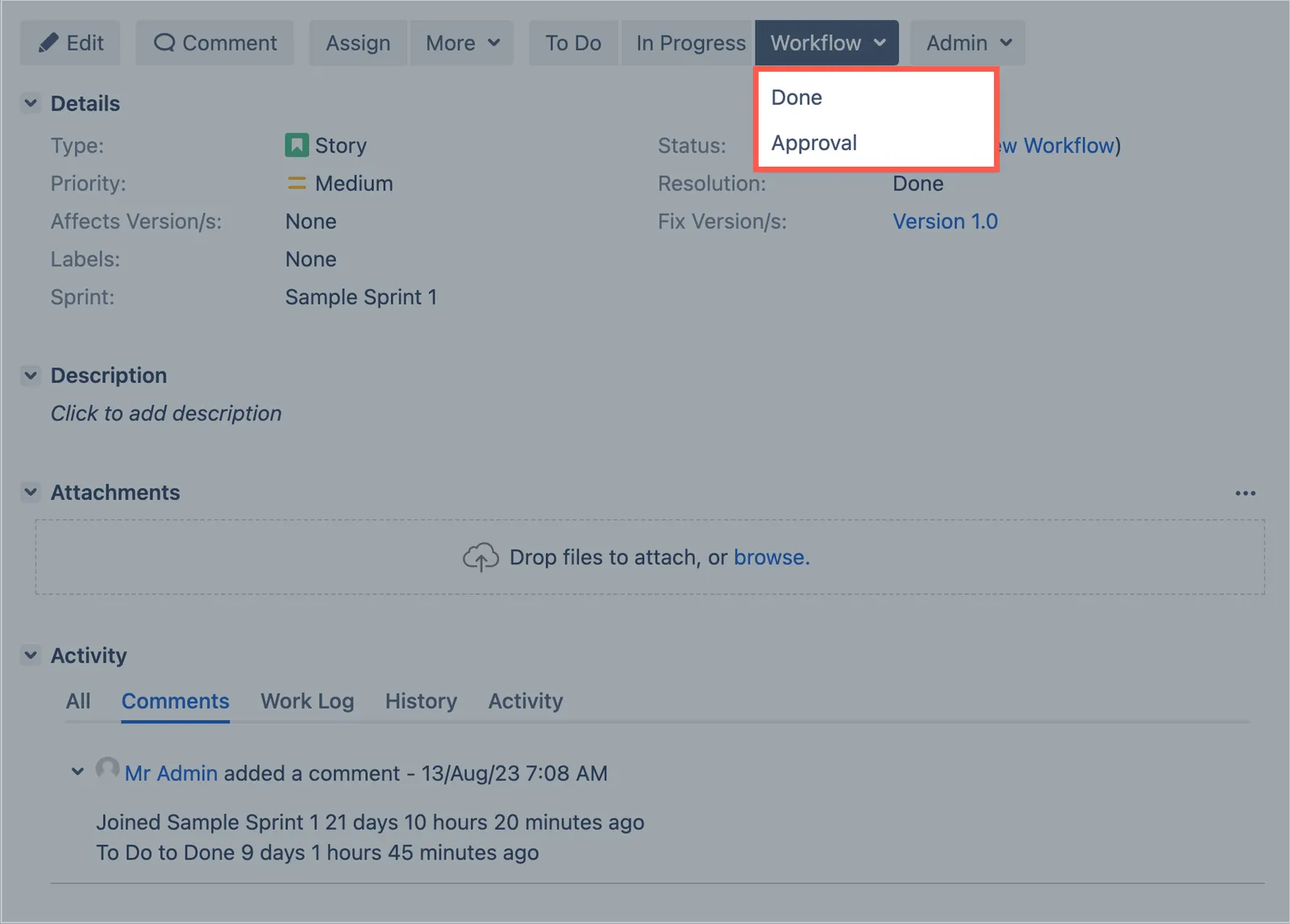

Workflow

The following locations are referenced in the image above:
  1. transitions-all

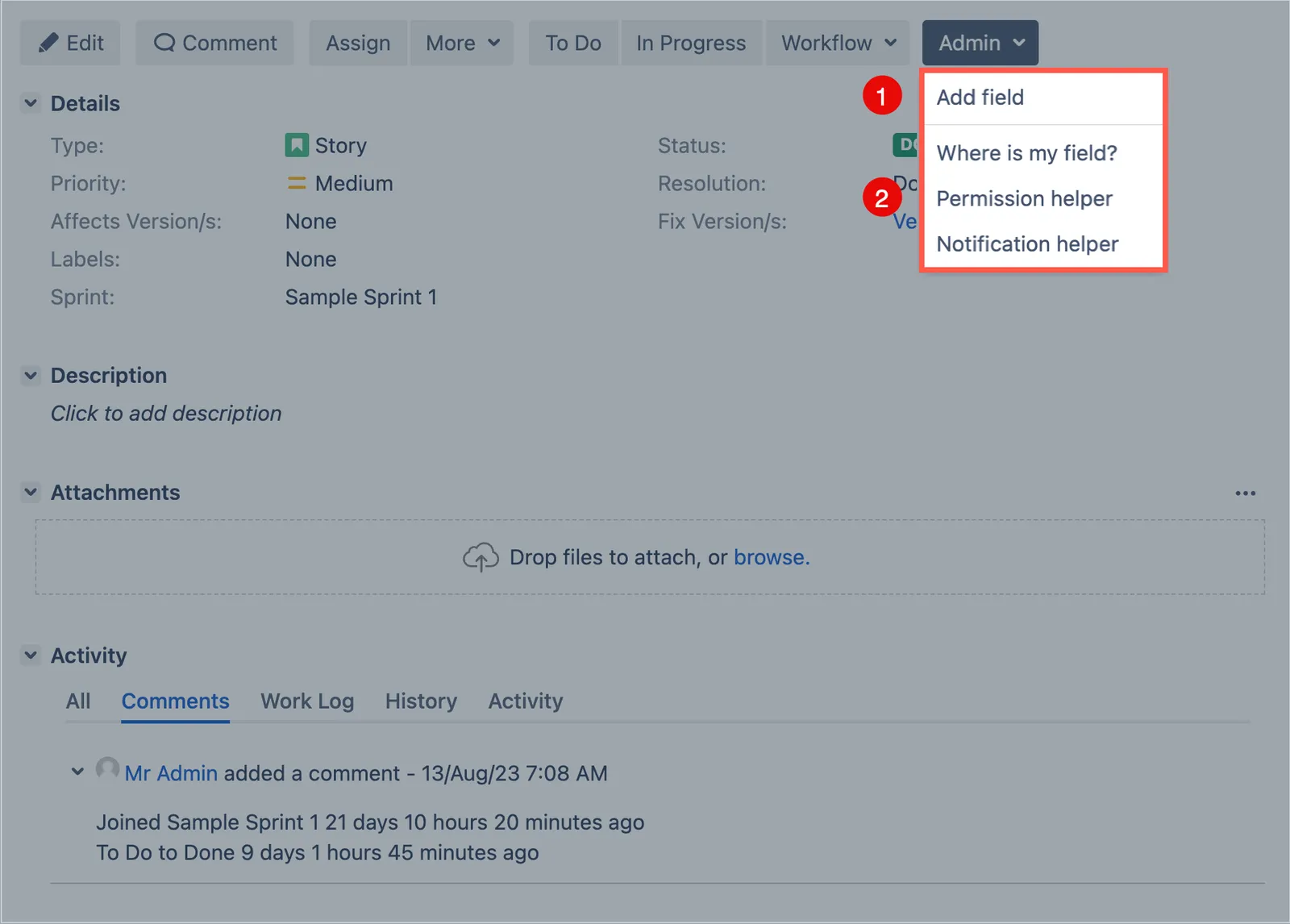

Admin

The following locations are referenced in the image above:
  1. operations-fields
  2. operations-admin-helper

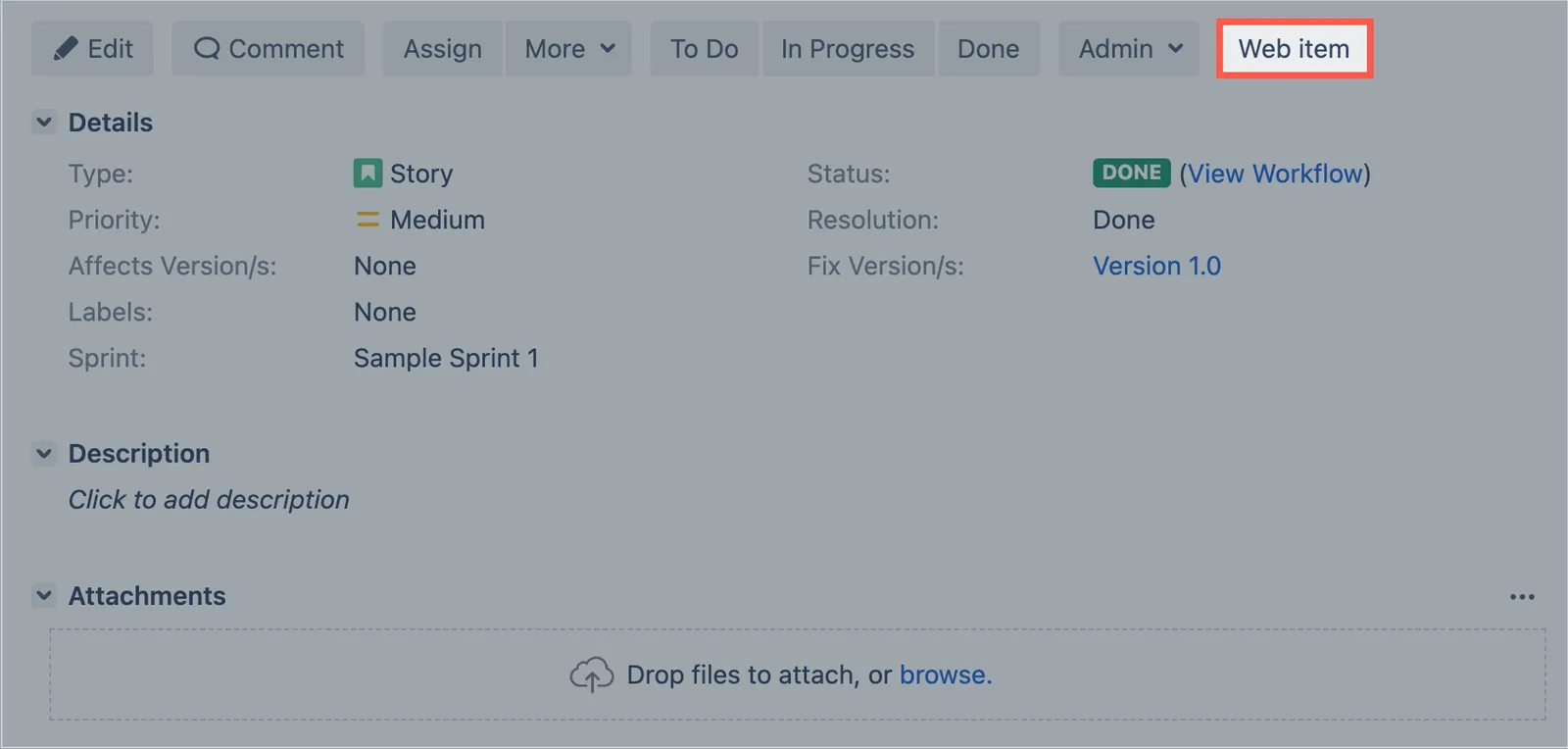

Issue page button

You can add an additional link/button to the Issues page using the following web item location ( operations-restore):

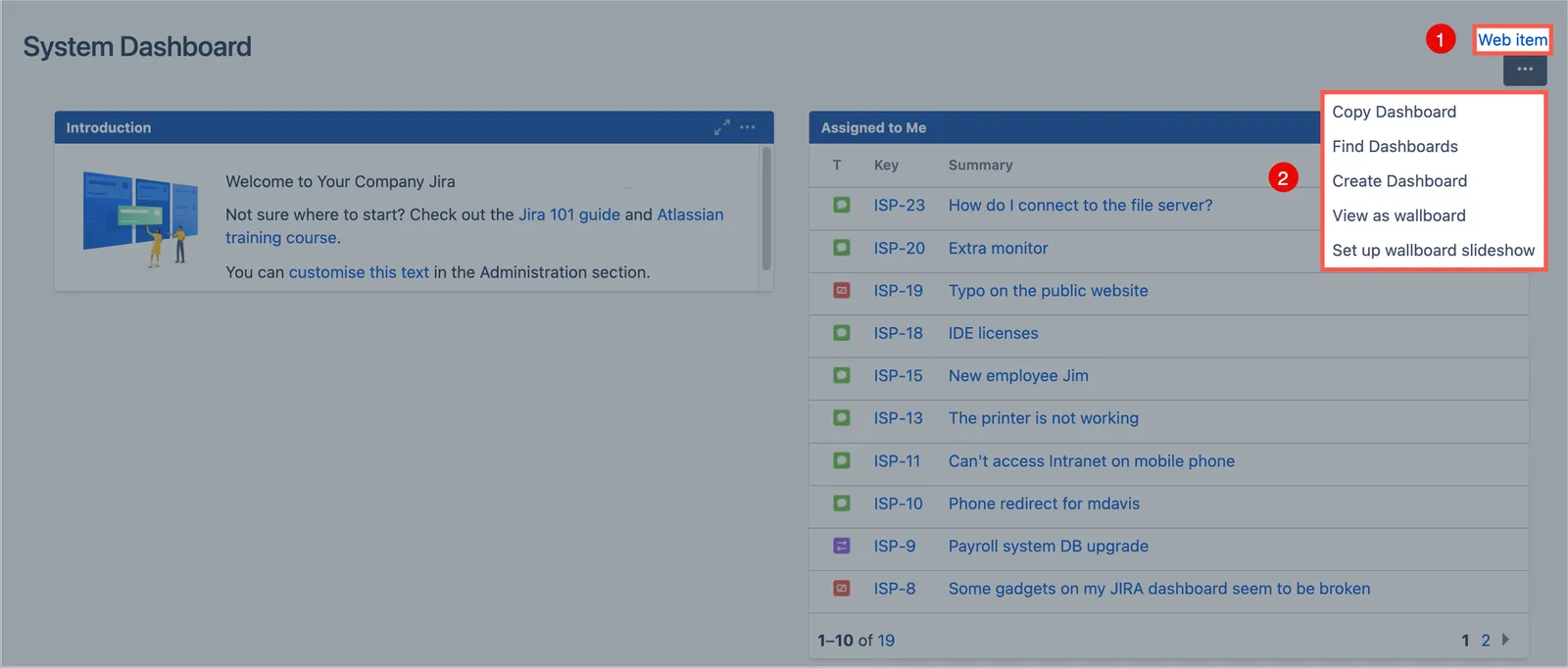

System Dashboard page

The following screenshot displays the web item locations you can find on the System Dashboard page.

The following locations are referenced in the image above:
  1. gadgets.dashboard.menu
  2. gadgets.dashboard.tools.menu
