Restrict Transitions

A Restrict transitions rule is a workflow condition that extends the functionality of a basic Jira workflow condition. A restricted transition checks to ensure a requirement is met before a transition is made available to users. If the script returns false, the transition button is not available for a work item until the condition is met.

There are several ways to enhance your workflow using Restrict transitions, as shown in Example Restrictions and Validators, including:

  • Allow a transition only if the summary starts with specified characters.
  • Restrict transitions if certain fields are not populated.
  • Enforce that the work item must have at least one PDF file attachment to transition.
  • Allow only certain users to transition a work item.

ScriptRunner for Jira Cloud provides workflow Restrict transitions using the Jira Expression Framework. It is not possible to use the REST API.

Navigate to Context Variables to see the variables provided by this framework that can be used to create expressions. Click the variables to view the properties that can be called.

Create a Restrict transition rule

  1. Navigate to the Workflows menu from within Jira's settings.
    You will see Active and Inactive workflows displayed.
  2. Click Edit from the Actions ellipsis for your chosen workflow, and the workflow opens.
    You can choose to view the workflow as a diagram or text; we will use the former for this example.

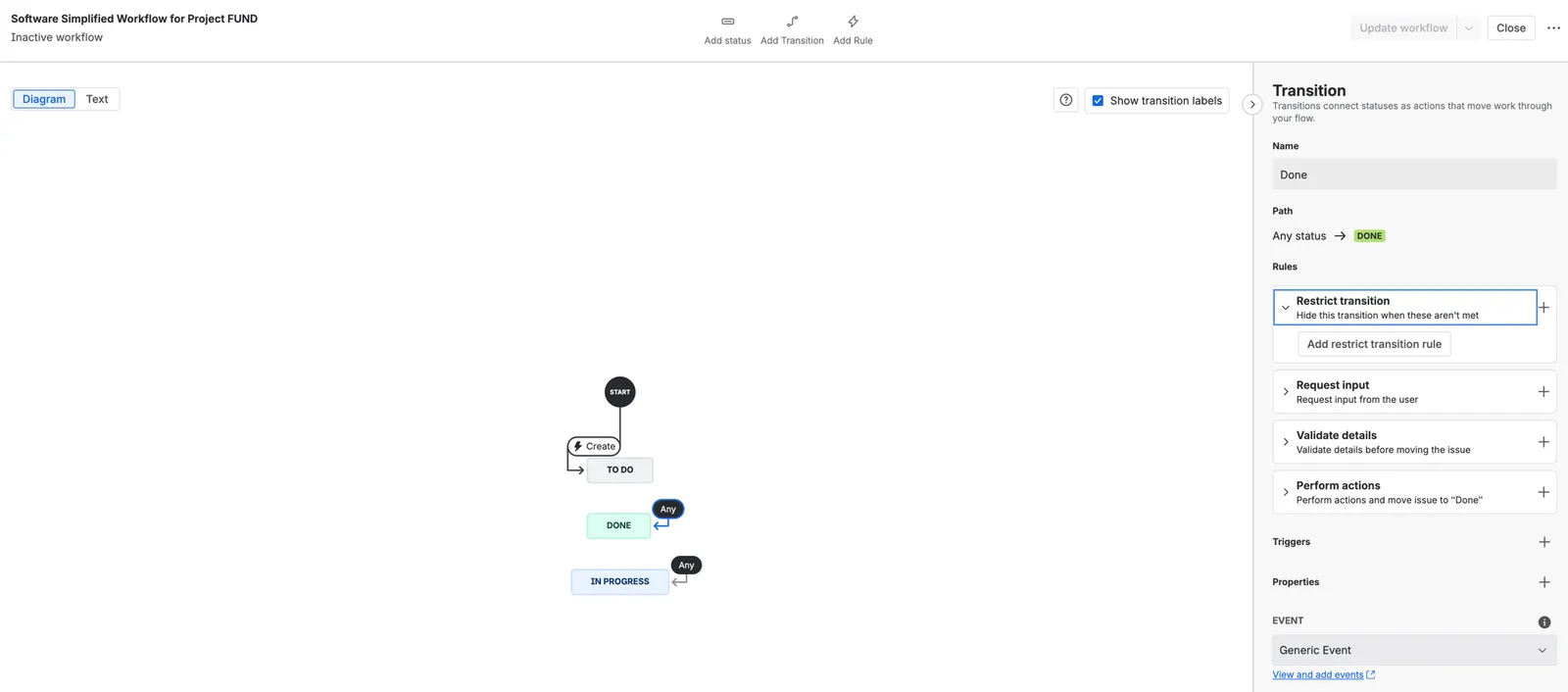

  3. Select a transition from within the workflow diagram.
    A list of associated workflow functions, including Restrict c onditions, Validate details, Perform action, Triggers, and Properties, is displayed for the selected transition.
  4. Click Restrict transition, and the workflow's transition options appear.
  5. Click Add restrict transition rule.
    You will see the list of conditions that can be added to the chosen transition .

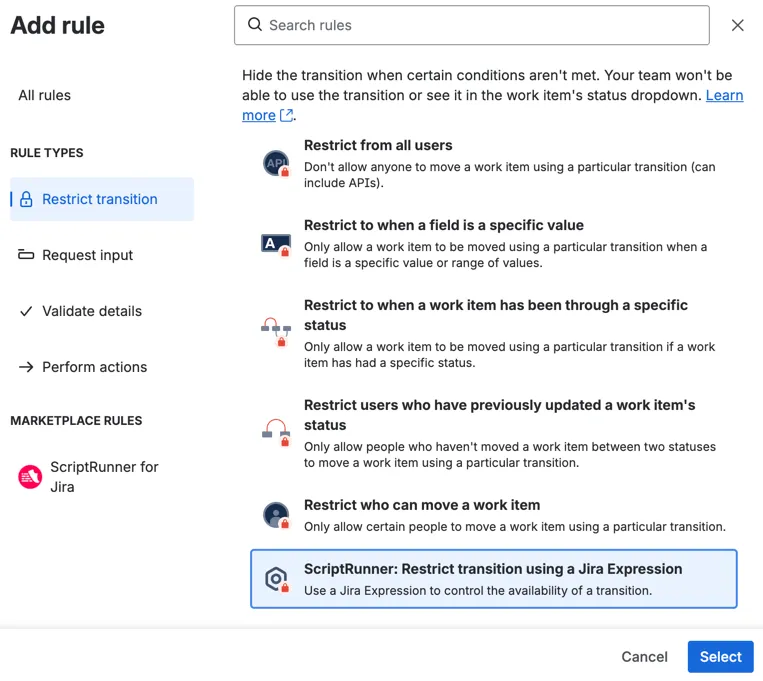

  6. Select the ScriptRunner: Restrict transition using a Jira Expression option and click Select.
  7. Enter a Name for the ScriptRunner Restrict transition rule.

    In the ScriptRunner Script Restrict transition field, enter the script condition expression. This script condition must be written as a Jira expression.

Edit a Restrict transition rule

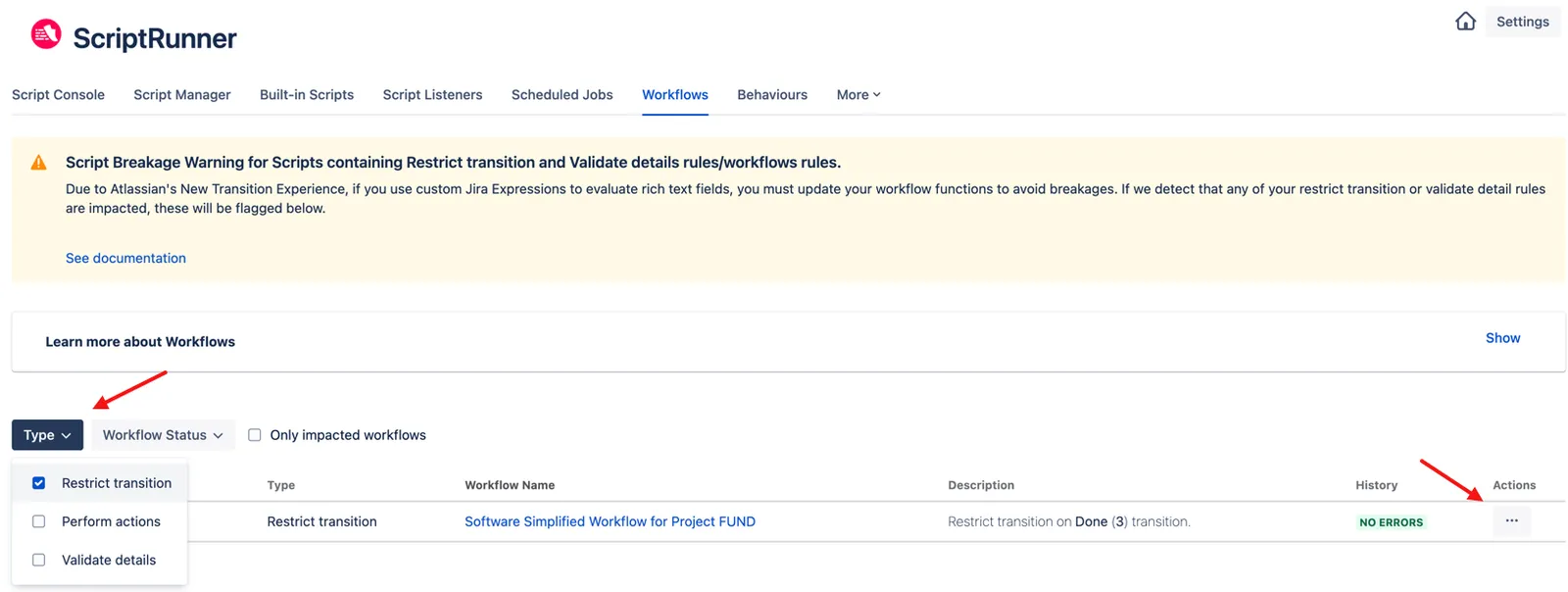

  1. Navigate to ScriptRunner > Workflows. All existing workflows are displayed as the default.
  2. Select Restrict transition from the Type drop-down list. You will now see a refined list displayed.
  3. Click the Actions ellipsis for your preferred workflow and select Edit.
  4. Edit the Restrict transition fields and click Save.
