Behaviours API

You can reference the functions and properties outlined below within your behaviour scripts.

Read/update fields

Access a field

All supported fields can be accessed by using getFieldById(fieldID).

For example:

const theDescription = getFieldById("description")
theDescription.setName("The description name");
const theValue = "the value is " + theDescription.getValue();
logger.info(theValue);

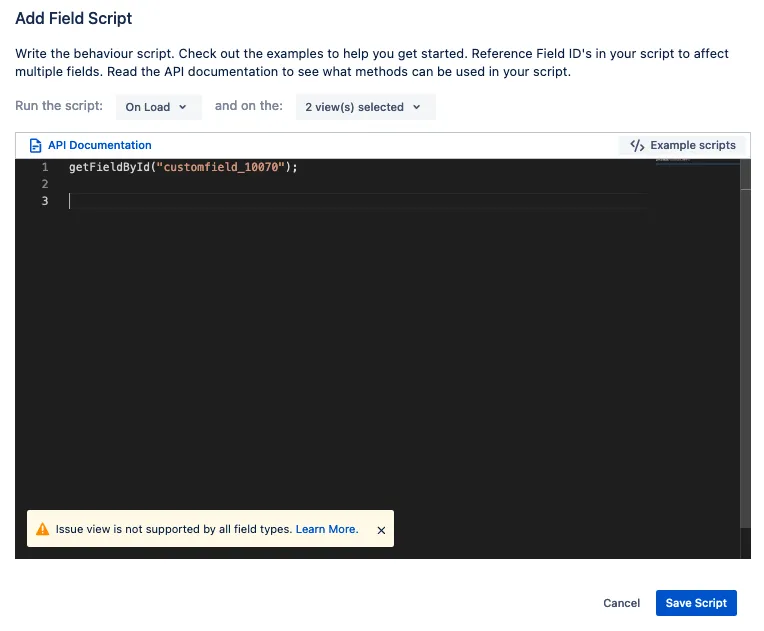

Accessing custom fields

Access a changed field

If your script is triggered onChange you can use the getChangeField() function. This function will return an object with the same structure as getFieldById.

For example:

const changedField = getChangeField()
if(changedField.getName() == "summary") {
    logger.info("The summary has changed!");
}

Available read methods

It is important to note that these methods are only accessible on the object returned by getFieldById.

Note: The usage of the getValue and setValue methods has changed for several fields as the displayName property has been deprecated. The examples outlined below show how these now work.

For the assignee, userPicker and multiUserPicker fields, only accountIds are returned as the displayName property is no longer available. Scripts that rely on displayName information will break; instead, you will now have to make a request to /rest/api/3/user?accountId= $ {accountId} and/or /rest/api/3/bulk?accountId== $ {idsToFetch.join("&accountId=")}.

For single and multiselect, you must now use the value property instead of the deprecated name property.

getContext

Returns the context details provided by Atlassian when a Jira or JSM behaviours script is run.

Return Type: Object

Jira

{
  cloudId: string;
  localId: string;
  environmentId: string;
  environmentType: string;
  moduleKey: string;
  siteUrl: string;
  appVersion: string;
  extension: {
    type: string;
    project: {
      id: string;
      key: string;
      type: string;
    };
    issueType: {
      id: string;
      name: string;
    };
    viewType: string;
    jira: {
      isNewNavigation: boolean;
    };
    location: string;
  };
  accountId: string;
  license: {
    active: boolean;
    type: string;
    supportEntitlementNumber: string | null;
    trialEndDate: string;
    subscriptionEndDate: string;
    isEvaluation: boolean;
    billingPeriod: string;
    ccpEntitlementId: string;
    ccpEntitlementSlug: string;
    capabilitySet: string | null;
  };
  timezone: string;
  locale: string;
  theme: {
    dark: string;
    light: string;
    motion: string;
    shape: string;
    spacing: string;
    typography: string;
    colorMode: string;
  };
  surfaceColor: string;
  userAccess: {
    hasAccess: boolean;
    enabled: boolean;
  };
  permissions: {
    scopes: string[];
    external: {
      fetch: {
        backend: string[];
        client: string[];
      };
      fonts: string[];
      styles: string[];
      frames: string[];
      images: string[];
      media: string[];
      scripts: string[];
    };
  };
};
}
Note: When a behaviour is run on the Issue View inside the extension property of the context object, then there is an issue object with the structure, as shown below.
        issue: {
            id: string,
            key: string,
        }
const context = await getContext()

Access the user that loaded the screen by account ID.

const context = await getContext()
context.accountId

Access the project key of the current project.

const context = await getContext()
context.extension.project.key

Access the ID of the current issue type.

const context = await getContext()
context.extension.issueType.id

Access the current issue key when on an issue view

const context = await getContext()
context.extension.issue.key

JSM portal create view

{
  cloudId: string;
  localId: string;
  environmentId: string;
  environmentType: string;
  moduleKey: string;
  siteUrl: string;
  appVersion: string;
  extension: {
    type: string;
    portal: {
      id: number;
    };
    request: {
      typeId: number;
    };
    viewType: string;
    location: string;
  };
  accountId: string;
  license: {
    active: boolean;
    type: string;
    supportEntitlementNumber: string | null;
    trialEndDate: string;
    subscriptionEndDate: string;
    isEvaluation: boolean;
    billingPeriod: string;
    ccpEntitlementId: string;
    ccpEntitlementSlug: string;
    capabilitySet: string | null;
  };
  timezone: string;
  locale: string;
  theme: {
    dark: string;
    motion: string;
    shape: string;
    spacing: string;
    colorMode: string;
  };
  surfaceColor: string;
  userAccess: {
    hasAccess: boolean;
    enabled: boolean;
  };
  permissions: {
    scopes: string[];
    external: {
      fetch: {
        backend: string[];
        client: string[];
      };
      fonts: string[];
      styles: string[];
      frames: string[];
      images: string[];
      media: string[];
      scripts: string[];
    };
  };
};
}

getDescription

Returns the description of the field

Return type: String

getFieldById("summary").getDescription()

getId

Returns the id of the field

Return type: string

getFieldById("summary").getId()

getName

Returns the name of a field

Return type: String

getFieldById("summary").getName()

getOptionsVisibility

Returns the options that are visible for a field.

This method can only be used after setOptionVisiblity has been called; otherwise, it may be returned as undefined.

Return Type: Object

{options: Array<string>, isVisble: boolean}

Supported Fields:

  • Priority
  • Issue Type
  • Select List Fields
  • Multi-Select List Fields
  • Checkbox Fields
getFieldById("priority").getOptionsVisibility()
getFieldById("issuetype").getOptionsVisibility()
Note: This method works for On Change events only and always returns undefined for On Load events.

getType

Returns the type of the field.

Return type: string

getFieldById("summary").getType()

getValue

Returns the value of a field. The return type depends on the field you're updating:

Field nameReturn typeExample getValue()
Affects Versions{ id: string, name: string }
// returns Affects versions
const versions = getFieldById("versions");
versions.getValue();

//example return value
{id: "10001", name: "2"}
Assignee Fieldnull | { accountId: string }
const assignee = getFieldById("assignee");
assignee.getValue();

//example return value
{accountId: "dfqsw43ref"}
Cascading Selectnull | { parent: { id: string; value: string }; child: { id: string; value: string } | null }
getFieldById("customfield_10035").getValue()

// example return value
Parent 1 - Child 1.1
Components Field{ id: string, name: string }
const components = getFieldById("components");
components.getValue();

//example return value
{id: "1234", name: "Component One"}
Custom Checkbox Field{ id: string, value: string }[]
const checkboxValue = getFieldById("customfield_02133").getValue();


//example return value
[{"id":"10021","value":"A"},{"id":"10022","value":"B"}]
Custom Date Picker Fieldstring | null
const date = getFieldById("customfield_02136").getValue();

//example return value
"2023-11-14"
Custom Date Time Picker Fieldstring | null
const dateTime = getFieldById("customfield_10035”).getValue();

//example return value
"2024-03-13T15:30+03:00"
Custom Multi User Picker Field{ accountId: string }[]
const userPicker = getFieldById("customfield_10984");
userPicker.getValue();

//example return value
[{accountId: "394urfjj9r2",},{accountId: "432-jftpwer0",},]
Custom Multiple Select Field{ id: string, value: string }[]
const multipleSelect = getFieldById("customfield_01232");
multipleSelect.getValue();

//example return value
[{id: "12345", value: "helloWorld",}, {id: "67890",value: "fooBar",}]
Custom Number Fieldstring | null
const number = getFieldById("customfield_02138").getValue();

//example return value
100
Custom Paragraph Fieldstring | ADParagraphField
// string is for Plain-text editor
// Rich-text editor (ADF format)
type ParagraphField = {
    string | ADParagraphField
}

More details about ADF: https://developer.atlassian.com/cloud/jira/platform/apis/document/structure/

Custom Radio Buttons Fieldstring | null
const radiobutons = getFieldById("customfield_02134").getValue();

//example return value
"10021"
Custom Select Fieldnull | { id: string, value: string }
const singleSelect = getFieldById("customfield_01231");
singleSelect.getValue();

//example return value
{id: "12345",value: "helloWorld",}
Custom Text Fieldstring
Custom URL Fieldstring | null
const url = getFieldById("customfield_02135").getValue();


//example return value
"https://www.adaptavist.com"
Custom User Picker Fieldnull | { accountId: string }
const userPicker = getFieldById("customfield_10984");
userPicker.getValue();

//example return value
{accountId: "394urfjj9r2",}
Descriptionstring | ADF
// We return a string or ADF (Atlassian Doc Format), depending on your Jira configuration
type ADF = {
    version: 1,
    type: 'doc',
    content: Node[]
}

More details about ADF: https://developer.atlassian.com/cloud/jira/platform/apis/document/structure/

Due Datestring | null
// returns due date
const dueDate = getFieldById("duedate").getValue();

//example return value
"2024-11-05"
Fix Versions Field{ id: string, name: string }
const fixVersions = getFieldById("fixVersions");
fixVersions.getValue();

//example return value
{id: "1234", name: "version One"}
Work Type Field{ id: string, name: string }
const workType = getFieldById("issuetype");
workType.getValue();

//example return value
{id: "1234", name: "Task"}
Labelsstring[]
Original Estimatenumber | null
const originalEstimateField = getFieldById("timeoriginalestimate");
originalEstimateField.getValue();

//example return value
4 | null
Parent Field{ id: "10001", key: "DEMO-1000" } | null
const parentField = getFieldById("parent");
parentField.getValue();

//example return value
{ id: "10001", key: "DEMO-1000" } | null
Priority Field{ id: string, name: string, iconUrl?: string }
const priority = getFieldById("priority");
priority.getValue();

//example return value
{id: "12345", name: "test"}
Space Picker Field{ projectId: string }
const spacePicker = getFieldById("customfield_10001");
spacePicker.getValue();

//example return value
{projectId: "10899"}
Reporter Fieldnull | { accountId: string }
const reporter = getFieldById("reporter");
reporter.getValue();

//example return value
{accountId: "dfqsw43ref",}
Status Field{ id: string, name: string }
// returns StatusField
const statusField = getFieldById("status");
statusField.getValue();

//example return value
{id: "12345", name: "test"}
Summarystring
getFieldById("summary").getValue()
Target End Datestring | null
// returns target end date
const targetEnd = getFieldById("customfield_10023").getValue();

//example return value
"2024-11-05"
Target Start Datestring | null
// returns target start date
const targetStart = getFieldById("customfield_10022").getValue();

//example return value
"2024-11-05"

isCreateView

Returns whether or not the current view is the Create View.

Return type: boolean

if(isCreateView()){
    getFieldById("summary").setValue("This code works only on the Create View");
}

isIssueView

Returns whether or not the current view is the Issue View.

Return type: boolean

if (isIssueView()){
    getFieldById("summary").setValue("This code works only on the Issue View")
}

isTransitionView

Returns whether or not the current view is the Transition View.

Return type: boolean

if(isTransitionView()){
    const descriptionField = getFieldById("description");

    descriptionField.setValue({
        version: 1,
        type: "doc",
        content: [
            {
                type: "paragraph",
                content: [
                    {
                        type: "text",
                        text: "This code works only on the Transition View"
                    }
                ]
            }
        ]
    });
}

isReadOnly

Returns whether the field has been set as read-only.

Return type: boolean

getFieldById("summary").isReadOnly()

isRequired

Returns whether or not the field is required.

Return type: boolean

getFieldById("summary").isRequired()

isVisible

Returns whether the field has been hidden.

Return type: boolean

getFieldById("summary").isVisible()

Available write methods

It is important to note that these methods are only accessible on the object returned by getFieldById and getChange.

Note: If you are setting a field value which is in Atlassian Doc Format, Atlassian provides a tool that allows you to generate the ADF. You can read more in Atlassian's documentation.
Note: The usage of the getValue and setValue methods has changed for several fields as the displayName property has been deprecated. The examples provided in the table below show how these now work.

For the assignee, userPicker and multiUserPicker fields, only accountIds are returned as the displayName property is no longer available. Scripts that rely on displayName information will break; instead, you will now have to make a request to /rest/api/3/user?accountId= $ {accountId} and/or /rest/api/3/bulk?accountId== $ {idsToFetch.join("&accountId=")}.

For single and multiselect, you must now use the value property instead of the deprecated name property.

setDescription(desc)

Updates the field description.

Parameter: desc

Parameter type: string

getFieldById("summary").setDescription("A new description")

setName(name)

Updates the field name.

Parameter: name

Parameter type: string

getFieldById("summary").setName("A new name")

setOptionVisibility(options,isVisible)

Updates the values that are selectable in a field.

Parameter: options

Parameter type: Array<string> - Strings of the option value IDs

Parameter: isVisible

Parameter type: boolean

Note: setting isVisible to true shows the specified option values in the field only, whereas false hides the specified option values in the field.
getFieldById("priority").setOptionsVisibility(["1","2"], true)
getFieldById("issuetype").setOptionsVisibility(["12345","67890"], true)

setReadOnly(readable)

Sets a field to read-only.

Parameter: readable

Parameter type: boolean

const summary = getFieldById("summary").setReadOnly(true)
Note:Hidden Fields

When the text (single), select list (single and multiple), checkbox, radio and number fields are set to read only but have no value in Issue View, they will be hidden.

setRequired(required)

Updates a field as to whether or not it should be required.

Parameter: required

Parameter type: boolean

getFieldById("summary").setRequired(true)

setValue(value)

Updates the field value.

Parameter: value

Parameter type: Depends on the field you're updating:

Field NameReturn / Parameter TypeExample setValue()
Affects Versions(value: string[] ) // Strings of version ids
getFieldById("versions").setValue(["10000","10001"])
Assignee(value: string | null)
const assignee = getFieldById("assignee")assignee.setValue("5556634")
Cascading Select (value: { parentId: string; childId: string | null ; } | null)
getFieldById("customfield_10054").setValue({
  parentId: "1030",
  childId: "1031"
})
Components(value: string[] ) // Strings of component Ids
getFieldById("components").setValue(["12345","56789"])
Custom Checkbox Fieldstring[] (option IDs)
const checkbox = getFieldById("customfield_02133").setValue(['10021','10022'])
Custom Date Picker Fieldstring ( yyyy-mm-dd)
const datePicker = getFieldById("customfield_02136").setValue('2023-11-14')
Custom Multiple Select Field(value: string[])
const multipleSelect = getFieldById("customfield_01232")
multipleSelect.setValue(["4", "5"])
Custom Multiple User Pickerstring[] (accountIds)
const multiUserPicker = getFieldById("customfield_012322")
multiUserPicker.setValue(["557058:db4467a5-32f3-48f9-be3b-687a1bc0468c", "712020:b81688df-0c5d-44cb-bc11-315f0e8e4390"])
Custom Number Fieldnumber
const numberField = getFieldById("customfield_02138").setValue(100')
Custom Paragraph Fieldstring | ADF
// Plain-text editor: | type ADF = {version: 1,  type: 'doc', content: Node[]} // Rich-text editor (ADF format)//
https://developer.atlassian.com/cloud/jira/platform/apis/document/structure/
Custom Radio Buttons Fieldstring (option ID)
const radioButtons = getFieldById("customfield_02135").setValue('10021')
Custom Single Select Field(id: string | null)
const singleSelect = getFieldById("customfield_01231")
singleSelect.setValue("3")
Custom Text Fieldstring
Custom URL Fieldstring
const urlField = getFieldById("customfield_02134").setValue("https://www.adaptavist.com")
Custom User Picker Fieldstring (accountId)
const singleUserPicker = getFieldById("customfield_012321")
singleUserPicker.setValue("557058:db4467a5-32f3-48f9-be3b-687a1bc0468c")
Descriptionstring | ADF
Due Datestring ( yyyy-mm-dd)
const dueDate = getFieldById("duedate").setValue("2024-11-05")
Fix Versions(value: string[] ) // Strings of version Ids
getFieldById("fixVersions").setValue(["12345","56789"])
Issue Type( value: string | null) // String is the Issue Type ID
getFieldById("issuetype").setValue("12345")
Labelsstring[]
Original Estimate(value: number | null)
getFieldById("timeoriginalestimate").setValue(4)
Parent(id: string | null ) // String of parent Id
getFieldById("parent").setValue("10001")
Priority(value: string | null)
const priority = getFieldById("priority")priority.setValue("2")
Space Picker Field(projectId: string | null)
getFieldById("customfield_10001").setValue("10899")
Reporter(value: string | null)
getFieldById("reporter").setValue("1234-3434-324234")
Status(transitionId: string )// String of transition ID
getFieldById("status").setValue("10")
Summarystring
getFieldById("summary").setValue(<FieldValue>)
Target End Datestring ( yyyy-mm-dd)
const targetEnd = getFieldById("customfield_10023").setValue("2024-11-05")
Target Start Datestring ( yyyy-mm-dd)
const targetStart = getFieldById("customfield_10022").setValue("2024-11-05")

setVisible(visible)

Updates the visibility of the field.

Parameter: visible

Parameter type: boolean

getFieldById("summary").setVisible(false)

Behaviours on screen tabs

Note:Demo video

You can watch our helpful demo video highlighting how the Behaviours on Screen Tabs feature works.

It is important to note that all Behaviours on screen tabs methods are only accessible on the object returned by getScreenTabById. `

type ScreenTab = {
    getId: () => string;
    isVisible: () => boolean;
    setVisible: (isVisible: boolean) => void;
    focus: () => void;
}

getId

Returns the screen tab identifier.

Return type: string

getId(): string

isVisible

Returns true if the tab is currently visible. Returns false otherwise.

Return type: boolean

isVisible(): boolean

setVisible

Changes tab visibility.

Return type: void

setVisible(value: boolean): ScreenTabAPI

tab.setVisible(false);
Note:Do not hide in-focus tabs

Always ensure that you are not hiding the tab currently in focus. Doing so means your UIM won't be applied and the onError callback will receive a SCREENTABS_VALIDATION_FAILED error.

focus

Switches the focus to a given screen tab. Automatically puts other visible tabs out of focus.

Return type: void

focus(): ScreenTabAPI

tab.focus();
Note:

The screen tab setter methods are grouped and applied after the completion of other Behaviours that run on load or on change. This means that reading the values using the getter methods will always return the screen tab's initial state.

You can refer to Atlassian's UI Modifications documentation for more details about screen tabs.

Make REST requests

You can use makeRequest to hit the Jira Cloud REST API.

Parameters:

url: string of the rest endpoint

requestOptions: Optional request options of type RequestInit | typescript - v3.7.7

Return type: Promise<{status: number, body: JSON }>

For example:

const res = await makeRequest("/rest/api/2/myself");
if(res.body.accountId == "the accountId") {
logger.info("User is bob");
}

Some Jira REST APIs are not supported on Atlassian Forge and will, therefore, not work on the Behaviours feature. For example, requests with OAuth2 permission scopes generally work on Forge. Where this scope is absent, we expect that the API endpoint is not supported on Forge.

You can make a POST request that specifies request options and headers with the makeRequest method. You can also make other types of REST requests, including PUT or POST. The example below shows how to make a POST request to the Jira expression API to test if an issue has more than 25 characters in the description and if so, to set some text in the summary field.

const body = `{
 "expression": "issue.description.plainText.length >25",
 "context": {
 "issue": {
 "key": "DEMO-1" // Specify the Issue key to test agains
        },
 "project": {
 "key": "DEMO" // Specify the project key here for the project of the issue being tested against
        }
    }
}`;

const res = await makeRequest("/rest/api/3/expression/eval?expand=meta.complexity", {
method: "POST",
headers: {
 'Accept': 'application/json',
 'Content-Type': 'application/json'
  },
body: body
});

if(res.body.value === false){
    getFieldById("summary").setValue("Description field has less than 25 characters");
}else{
    getFieldById("summary").setValue("Description field has more than 25 characters");
}

Logs

A logger is available, which will allow admins to view logs on the log page. This can be accessed by using the logger object.

Using the logger allows you to read the logs from your scripts inside the ScriptRunner Logs page.

For example:

logger.info ("hello world");

Available functions - each method takes a string parameter:

  • warn(msg)
  • debug(msg)
  • info(msg)
  • trace(msg)

Search documentation

Start typing to search the docs.
