LaTeX Inline
The LaTeX Inline macro enables users to add mathematical equations and formulas inline in Confluence pages using LaTeX syntax. It includes a code-style editor with live preview, allowing equations to be written and rendered in real time.

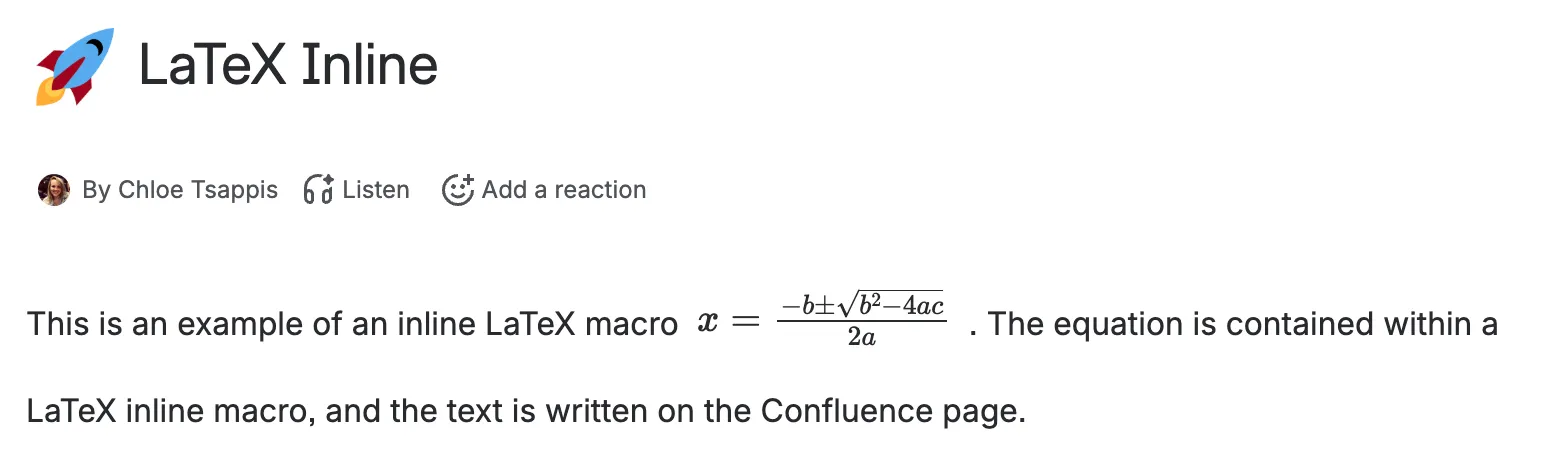

Use LaTeX Inline for short equations that appear inline with your text. Write the sentence directly on the Confluence page and enter only the equation in the macro.
This macro requires some previous knowledge of using LaTeX and LaTeX Mathematics. It may also be helpful to review the documentation for MathJax, which enables the conversion between LaTeX and HTML and provides a range of informative examples of using the language.

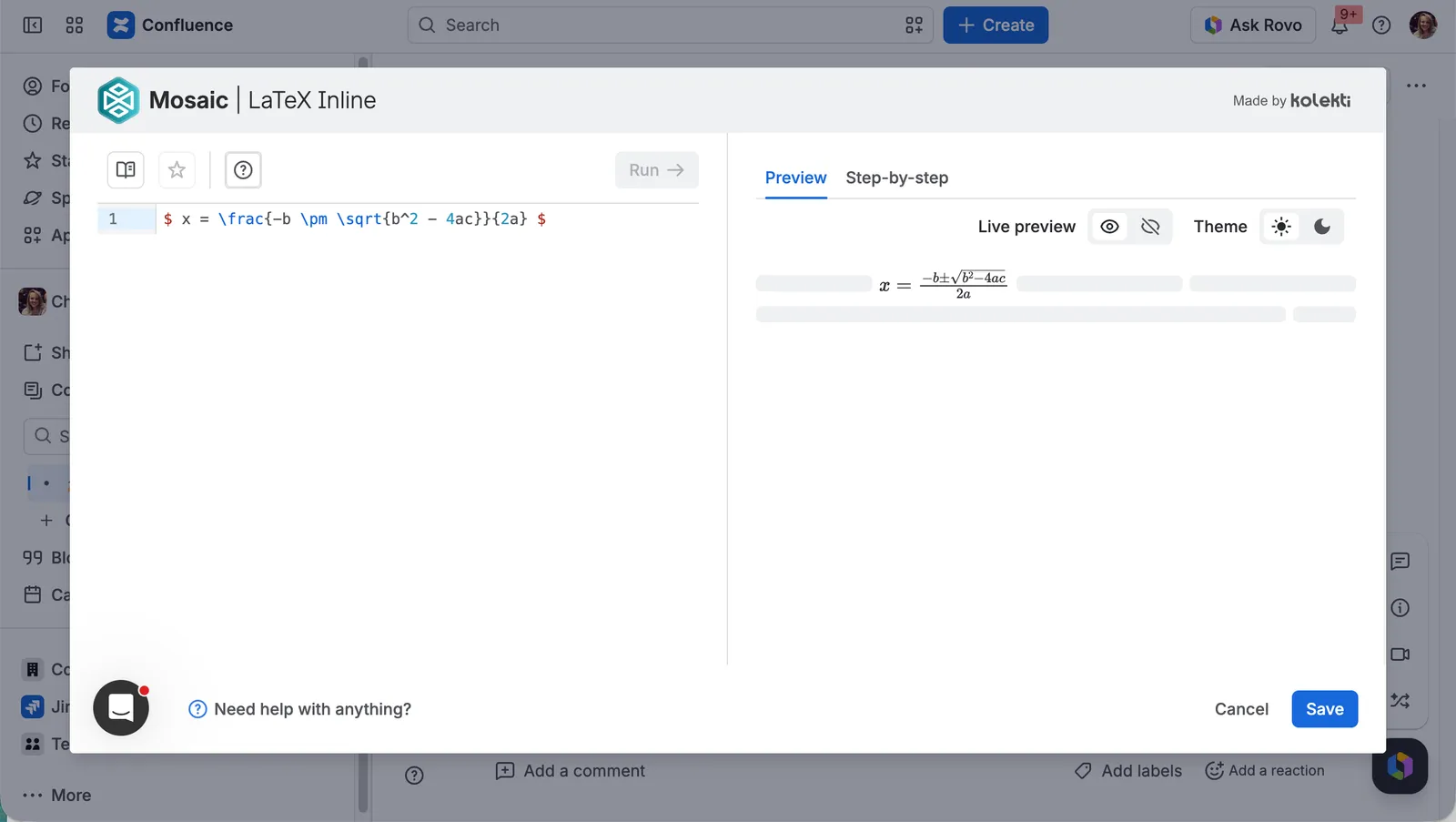

Add a LaTeX Inline macro to a page
Manual Formatting Options
Matrix

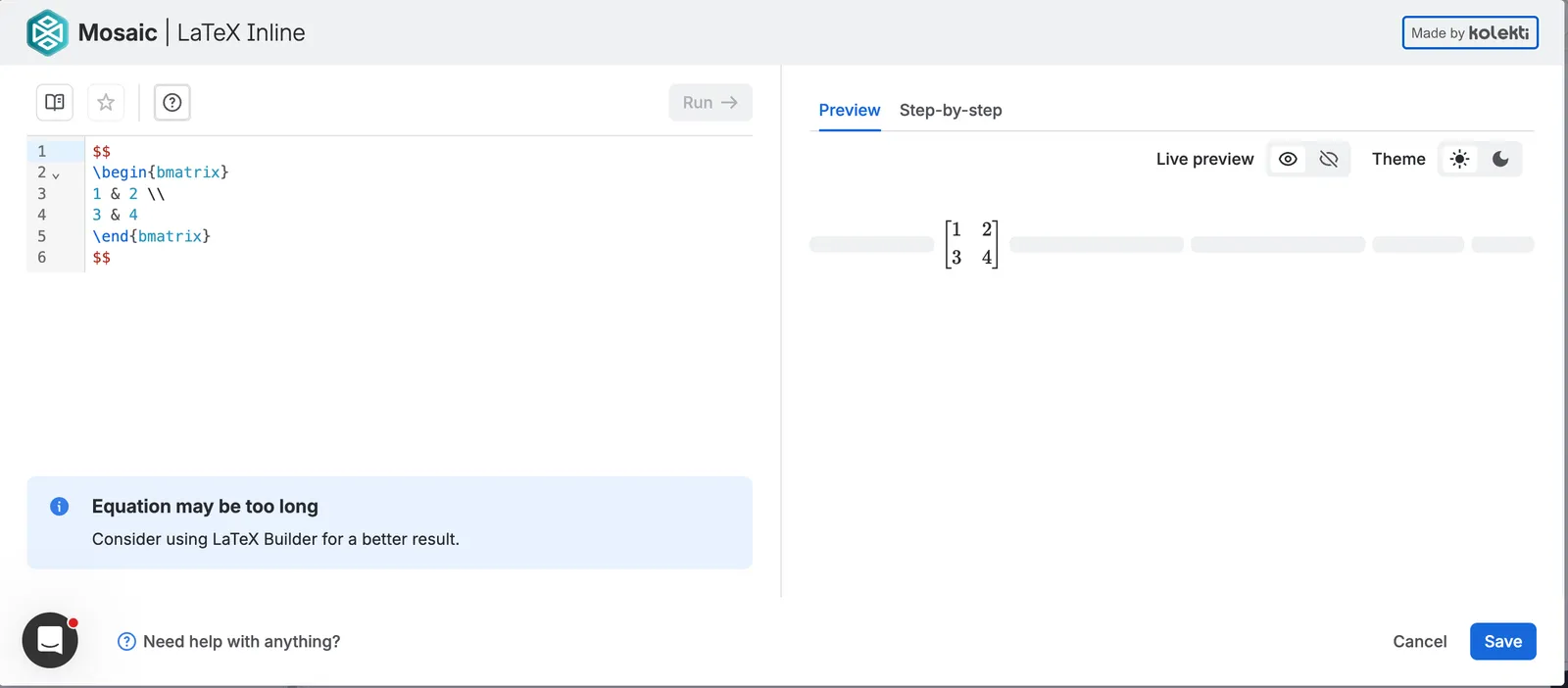

A matrix can be applied to arrange formulas in columns with different delimiters such as the centered bracketed matrix below.
$$
\begin{bmatrix}
1 & 2 \\
3 & 4
\end{bmatrix}
$$Color

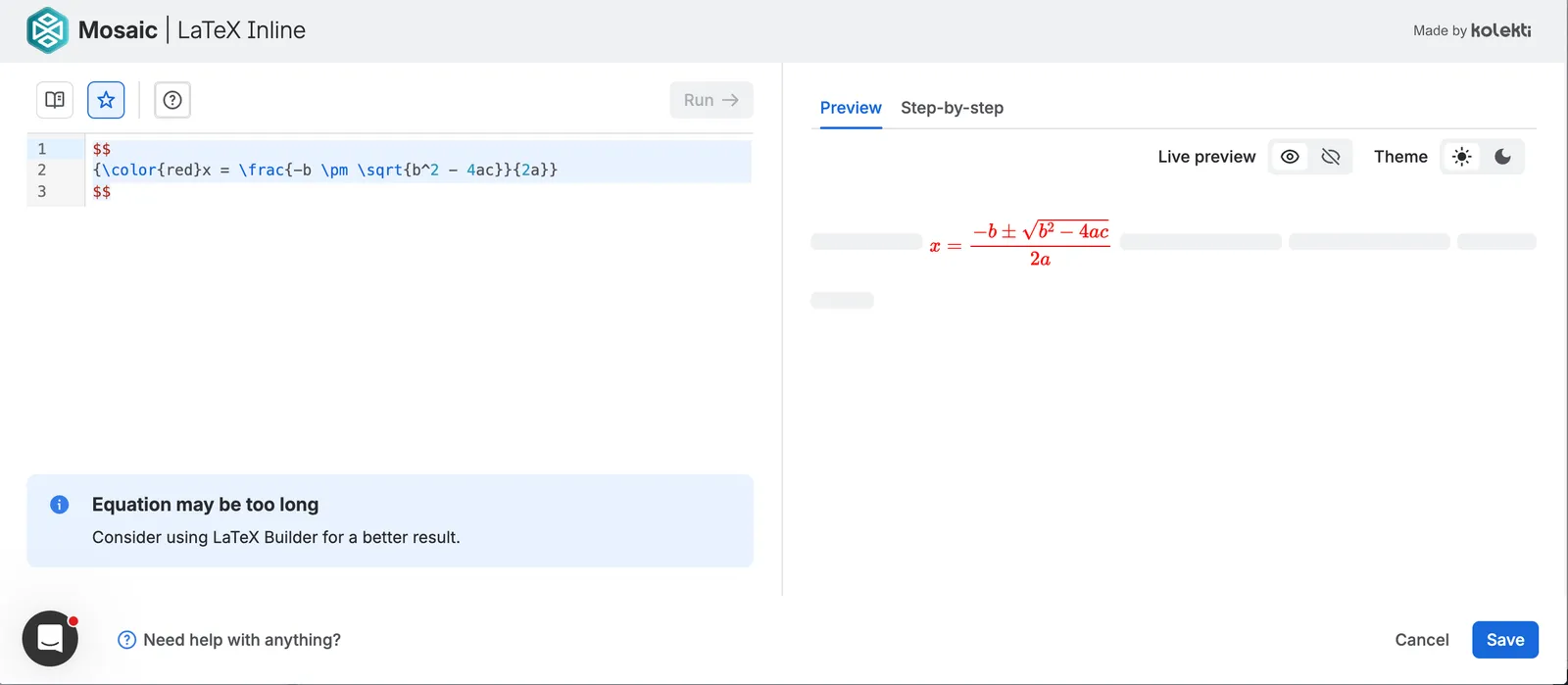

You can add color to your LaTeX formatting by adding a color command.
$$
{\color{red}x = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a}}
$$Error Handling and Smart Suggestions

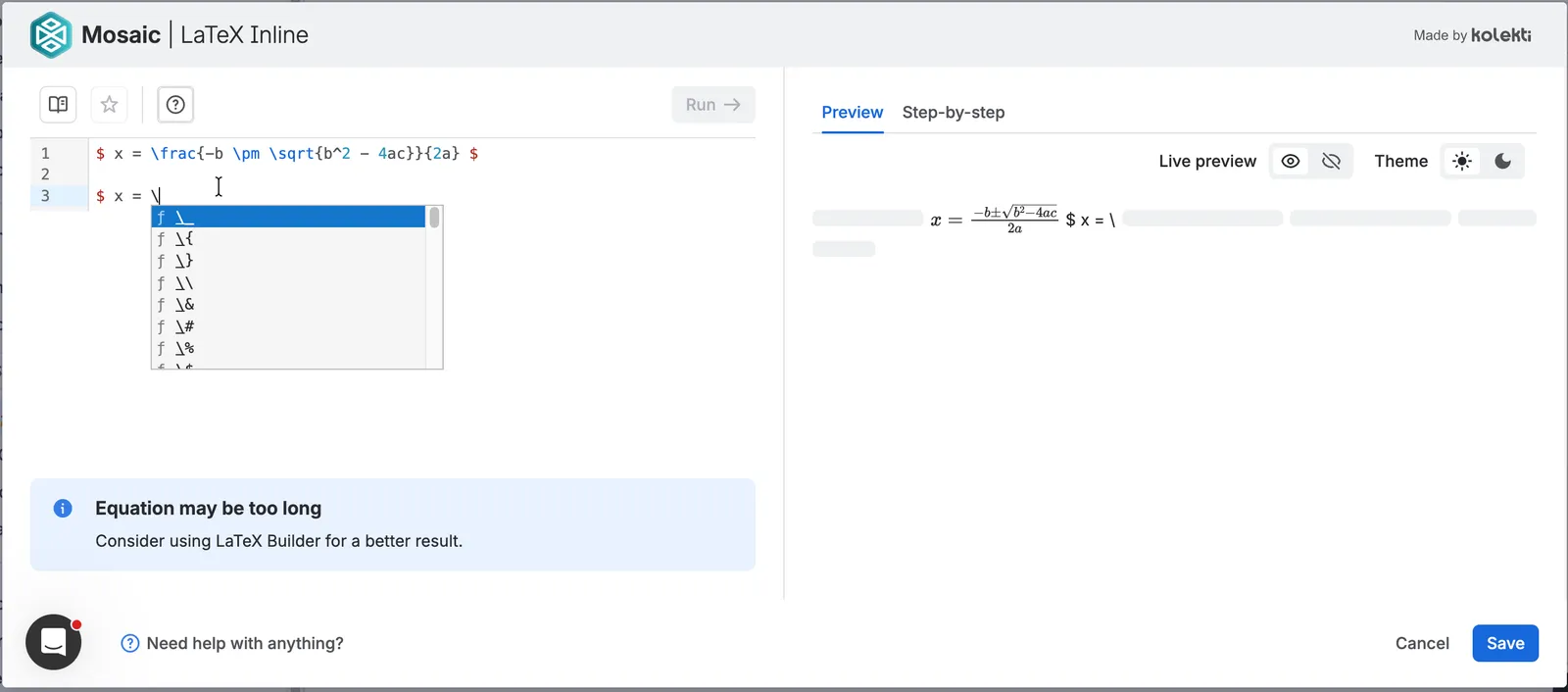

LaTeX builder provides live feedback as you work, including syntax validation, error highlighting and intelligent command suggestions.
Syntax Error Detection
As you type, LaTeX Inline validates your content and highlight potential syntax errors.
Missing or unmatched brackets/braces
Unclosed environments
