HTML Image

The HTML Image macro allows you to display an image within a page with extended properties such as an 'alt' tag and an image map feature.

Add HTML Image to your page

Navigate to the page you want to edit.
Click Edit.
Click the position where you want to add the image.
Click Insert More Content → Other Macros .

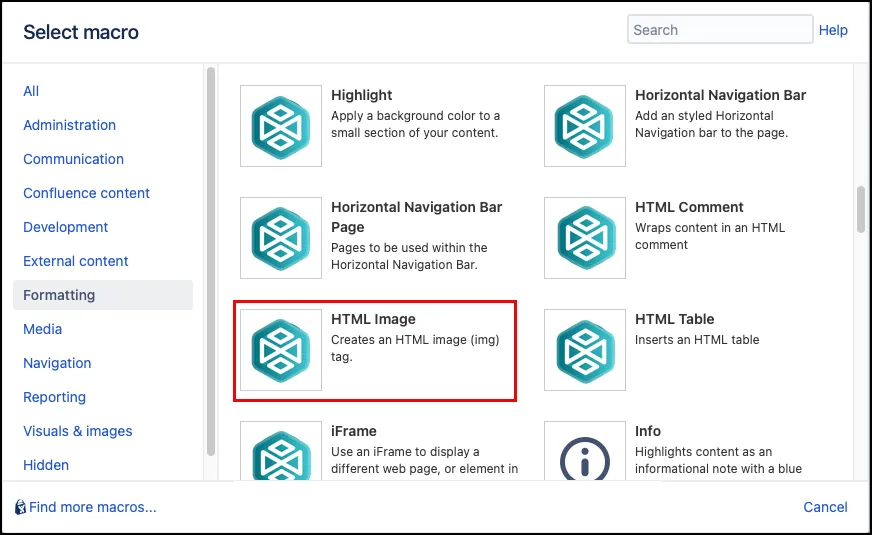

Select the HTML Image macro from the Macro Browser.

Complete the desired fields. The URL parameter must be specified for this macro to work.


Parameter	Description	Type	Default
Alt Text	Defines a short description of the contents	string	none
Image URL (src)	Defines the URL of the image source	string	none
Width	Set the width of the image in px (eg. 270px), or percentage of the page (eg. 70%)	string	none
Height	Set the height of the image in px (eg. 270px), or percentage of the page (eg. 70%)	string	none
Class as Server-side Image Map	Select if you want to class the image as a server-side image map	checkbox	unselected
Client-side Map	Defines the ID for a client-side map, linking to HTML on the page that includes this map	string	none
Long Description	A URL to a page that contains a long description of the content	string	none
ID	Specify a unique ID for this element. Use this to link to Tooltip, Dialog, or Rollover Macros. If using this parameter to apply styling to the element, do not include the # selector.	string	none
CSS Class	Use in combination with Global Confluence CSS or a CSS Stylesheet macro that you have added to your page. Enter the CSS class name(s) to apply to the macro (case sensitive); multiple classes can be separated by a space or comma. Do not include the `.` selector in the class name.	string	none
Inline Style	Option to apply an inline style, using CSS, to an individual div tag body content; useful for adding borders or padding, e.g. `border: 3px solid-red`. This style does not need to be defined in a CSS Stylesheet macro.	string	none
Title	Text to display in a tooltip	string	none
Text Direction	You can choose ltr (left to right) or rtl (right to left)	single select	none
Language Code	Enter a language code if you want to specify that the element content language is different from the default language of your page, e.g. `de` for German. Browsers will identify that the content is written in German.	string	none

Click Insert. The macro placeholder displays.
Save the page to render the image.

Examples

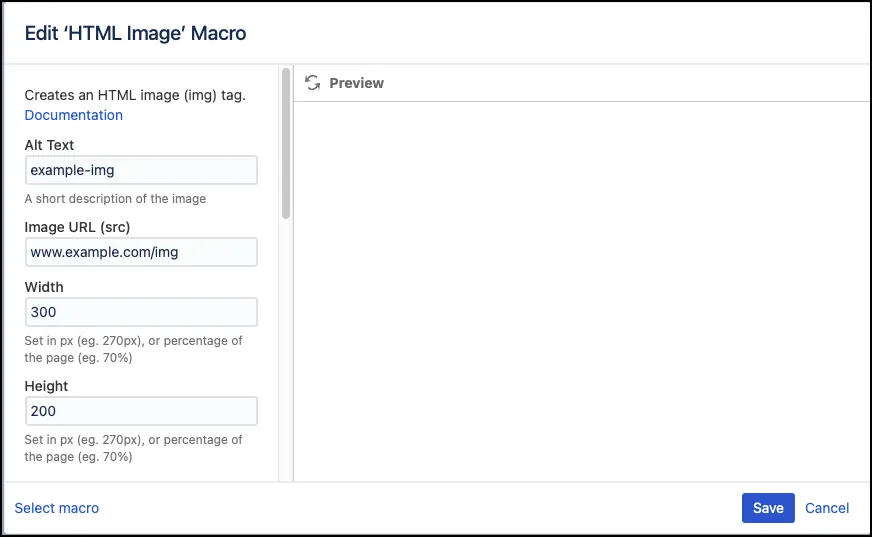

Basic example

Display an HTML image on a page:

Client-side image map

Atlassian's HTML macro must be enabled to use the client-side image map parameter. This action requires administrator permissions and the security risks should be understood before doing so.

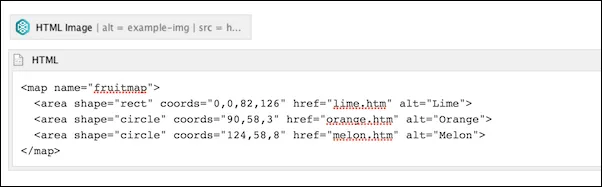

See Atlassian's HTML macro documentation for more information. Once the HTML macro is added to a page, an image map can be defined.

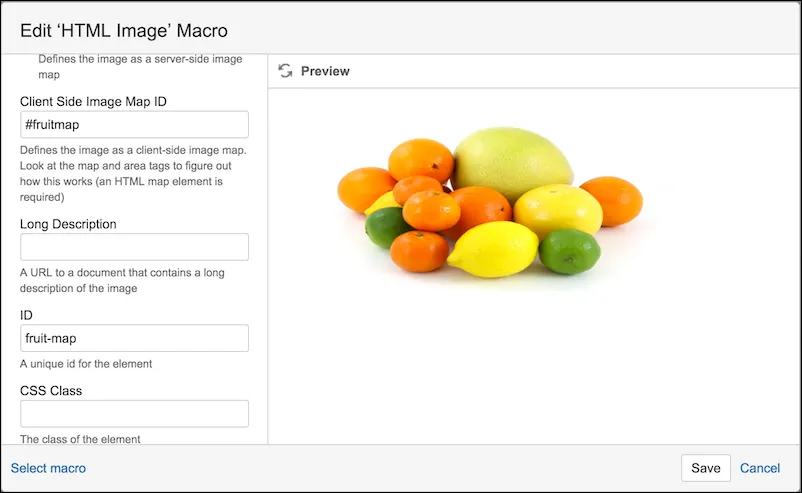

The name of the map should be the same as the 'Client-side image map' parameter for the HTML Image macro, as follows.
