Return Types
The script for your field must return the correct data type.
For a text field, the script must return a single line String. The String returned must be no more than 255 characters and must not contain any newline characters. If you want to return a string of more than 255 characters, you should use a paragraph scripted field.
// This is OK
return "Hello World"
// This is not OK
return "Hello
World"For a number field, the script must return a numeric type, for example an Integer, Long, Float, Decimal, or BigDecimal.
For a date field, the script must return a LocalDate.
import java.time.LocalDate
import java.time.Month
return LocalDate.of(2020, Month.JUNE, 25)For a datetime field, the script must return a ZonedDateTime.
import java.time.LocalDate
import java.time.LocalTime
import java.time.Month
import java.time.ZonedDateTime
import java.time.ZoneId
import java.time.ZoneOffset
return ZonedDateTime.now(ZoneId.of("America/New_York"))
// or
return ZonedDateTime.of(LocalDate.of(2020, Month.JUNE, 25), LocalTime.of(13, 45, 0), ZoneOffset.ofHours(-3))For a paragraph field, you can return either plain text or rich text.
You can use plain text if you want to return a single line string of more than 255 characters. You cannot include newline characters in a plain text string.
If you return using rich text, you must use the Atlassian Document Format (ADF). You can refer to Atlassian's ADF Builder for further details. You can also watch our demo video showing how to display tables within scripted fields using rich text.
We've provided some ADF examples below:
table with headings, 2 rows and 2 columns

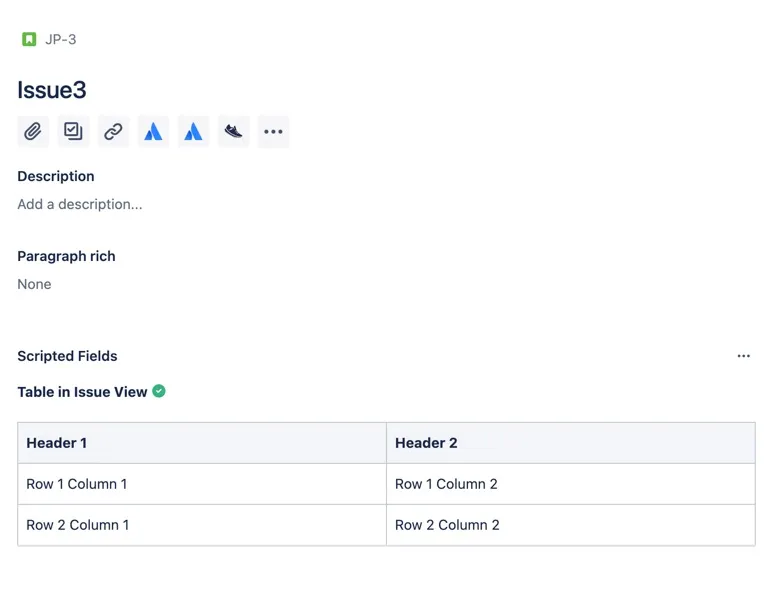

[ "version": 1, "type": "doc", "content": [ [ "type": "table", "attrs": [ "isNumberColumnEnabled": false, "layout": "default", "localId": "58c619ab-f32c-4dfa-aa54-2b4b39643deb" ], "content": [ [ "type": "tableRow", "content": [ [ "type": "tableHeader", "attrs": [:], "content": [ [ "type": "paragraph", "content": [ [ "type": "text", "text": "Header 1" ] ] ] ] ], [ "type": "tableHeader", "attrs": [:], "content": [ [ "type": "paragraph", "content": [ [ "type": "text", "text": "Header 2" ] ] ] ] ] ] ], [ "type": "tableRow", "content": [ [ "type": "tableCell", "attrs": [:], "content": [ [ "type": "paragraph", "content": [ [ "type": "text", "text": "Row 1 Column 1" ] ] ] ] ], [ "type": "tableCell", "attrs": [:], "content": [ [ "type": "paragraph", "content": [ [ "type": "text", "text": "Row 1 Column 2" ] ] ] ] ] ] ], [ "type": "tableRow", "content": [ [ "type": "tableCell", "attrs": [:], "content": [ [ "type": "paragraph", "content": [ [ "type": "text", "text": "Row 2 Column 1" ] ] ] ] ], [ "type": "tableCell", "attrs": [:], "content": [ [ "type": "paragraph", "content": [ [ "type": "text", "text": "Row 2 Column 2" ] ] ] ] ] ] ] ] ] ] ]When you are in work item view, this table example appears as follows:
paragraph

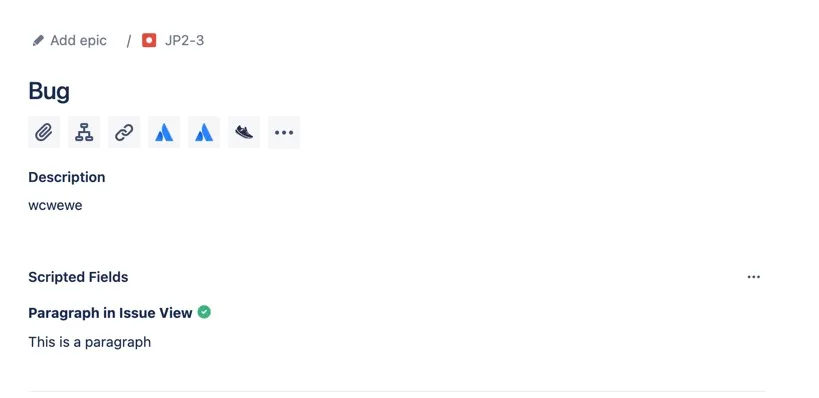

[ "version": 1, "type": "doc", "content": [ [ "type": "paragraph", "content": [ [ "type": "text", "text": "This is a paragraph" ] ] ] ] ]When you are in work item view, this paragraph example appears as follows:
Atlassian's Document Format Builder outputs JSON, so if you want to use it directly in the console rather than converting it to Groovy, you can use new groovy.json.JsonSlurper().parseText("""Your ADF"""). See the example below:
return new groovy.json.JsonSlurper().parseText("""
{
"version": 1,
"type": "doc",
"content": [
{
"type": "table",
"attrs": {
"isNumberColumnEnabled": false,
"layout": "default",
"localId": "58c619ab-f32c-4dfa-aa54-2b4b39643deb"
},
"content": [
{
"type": "tableRow",
"content": [
{
"type": "tableHeader",
"attrs": {},
"content": [
{
"type": "paragraph",
"content": [
{
"type": "text",
"text": "Header 1"
}
]
}
]
},
{
"type": "tableHeader",
"attrs": {},
"content": [
{
"type": "paragraph",
"content": [
{
"type": "text",
"text": "Header 2"
}
]
}
]
}
]
},
{
"type": "tableRow",
"content": [
{
"type": "tableCell",
"attrs": {},
"content": [
{
"type": "paragraph",
"content": [
{
"type": "text",
"text": "Row 1 Column 1"
}
]
}
]
},
{
"type": "tableCell",
"attrs": {},
"content": [
{
"type": "paragraph",
"content": [
{
"type": "text",
"text": "Row 1 Column 2"
}
]
}
]
}
]
},
{
"type": "tableRow",
"content": [
{
"type": "tableCell",
"attrs": {},
"content": [
{
"type": "paragraph",
"content": [
{
"type": "text",
"text": "Row 2 Column 1"
}
]
}
]
},
{
"type": "tableCell",
"attrs": {},
"content": [
{
"type": "paragraph",
"content": [
{
"type": "text",
"text": "Row 2 Column 2"
}
]
}
]
}
]
}
]
}
]
}
""")
