Dynamic Forms

Use the Dynamic Forms feature to simplify the process of adding variables to your ScriptRunner Groovy scripts.

With Dynamic Forms, you can annotate your variables in a script so they appear as selectable form fields. You can then save that script as a file to be shared with multiple users, allowing one script to be used for various use cases.

Why is the Dynamic Forms Feature Useful?

Inline scripts are often copied and pasted, with minor changes made for different use cases, which requires maintenance for each script usage. Using Dynamic Forms, you can create flexible scripts with annotated variables that can be stored as files, reducing maintenance requirements while allowing for script customization. Additionally, these annotations allow variable values within a script to be changed easily by those with limited code familiarity.

Where can you use the Dynamic Forms Feature?

Dynamic Forms are everywhere! You can use them on Jobs, Listeners, Pre Hooks, Post Hooks, Merge Checks, and just about everywhere you can write code.

Available Dynamic Form Field Types

The following dynamic form field types are available:


Name	Description	Target Type
User Picker	Field allowing user selection.	com.atlassian.bitbucket.user.ApplicationUser
Short Text	Field allowing a short text input.	String
Select List	Single-select list field. Custom select list If you cannot find an annotation that is suitable for your purpose, you can use `optionsGenerator` within the select list annotation to customize your own list options.	String
Checkbox	A checkbox field.	Boolean
Project Picker	Field allowing project selection.	com.atlassian.bitbucket.project.Project
Repository Picker	Field allowing repository selection.	com.atlassian.bitbucket.repository.Repository
Branch Picker	Field allowing branch selection.	com.onresolve.scriptrunner.bitbucket.branch.BranchWithRepository implements: com.atlassian.bitbucket.repository.Branch has a reference to: com.atlassian.bitbucket.repository.Repository
Tag Picker	Field allowing branch selection.	com.onresolve.scriptrunner.bitbucket.tag.TagWithRepository implements: com.atlassian.bitbucket.repository.Tag has a reference to: com.atlassian.bitbucket.repository.Repository

Note: Don't see a field you want? Contact Adaptavist Support to raise a feature request.

Creating a Dynamic Form

There are three main steps in creating a dynamic form that can be used across multiple features by multiple users:

The steps below describe how we expect most users to use the Dynamic Forms feature. This feature can be used in whatever way you find most useful.

Create the dynamic form in the Script Console to make sure it works as expected.
Save the dynamic form as a file.
Use the saved file in a Job, Listener, Pre Hook, Post Hook, Merge Check, or other ScriptRunner feature.

The above steps are detailed below.

Note: For the examples below we use a script that allows you assign reviewers for a pull request. In this example the User field is annotated to create the Reviewers form field.

Create a dynamic form

Navigate to ScriptRunner.
Select Console.

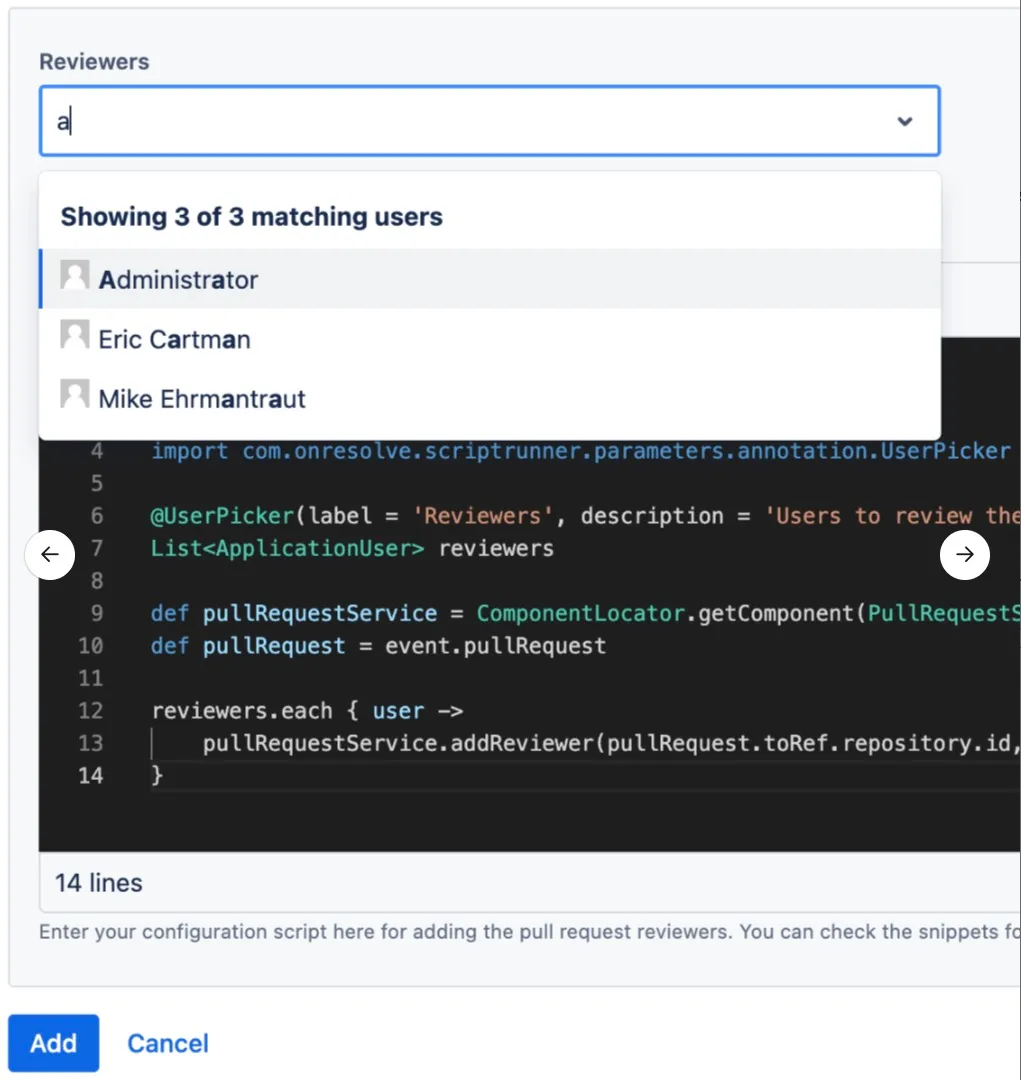

Write your new script, annotating the variables you want to display as form fields above the script. In this example we're using the following script:

import com.atlassian.bitbucket.pull.PullRequestService
import com.atlassian.sal.api.component.ComponentLocator
import com.atlassian.bitbucket.user.ApplicationUser
import com.onresolve.scriptrunner.parameters.annotation.UserPicker

@UserPicker(label = 'Reviewers', description = 'Users to review the PR', multiple = true)
List<ApplicationUser> reviewers

def pullRequestService = ComponentLocator.getComponent(PullRequestService)
def pullRequest = event.pullRequest

reviewers.each { user ->
    pullRequestService.addReviewer(pullRequest.toRef.repository.id, pullRequest.id, user.name)
}

Tip: Use the Annotations provided to help construct your own annotated script.

Save the dynamic form as a file

Copy the script you created in the Script Console.
Go to the Script Editor to open your Scripts Root folder.
Select the folder in which you want to save the script, and select the Create New File icon.
Enter a file name in the Add Groovy File window. In this example we use the name Assign_reviewers_for_PR.
Select Add.
Paste your inline script into the file, and click Save. This script is now available as a file and can be shared with multiple Bitbucket users on the same instance.

Use the dynamic form file elsewhere

Navigate to the feature where you want to use the dynamic form.
Enter the relevant details into the feature.
Select File when going to enter an Inline script.
Select the dynamic form file you wish to use.

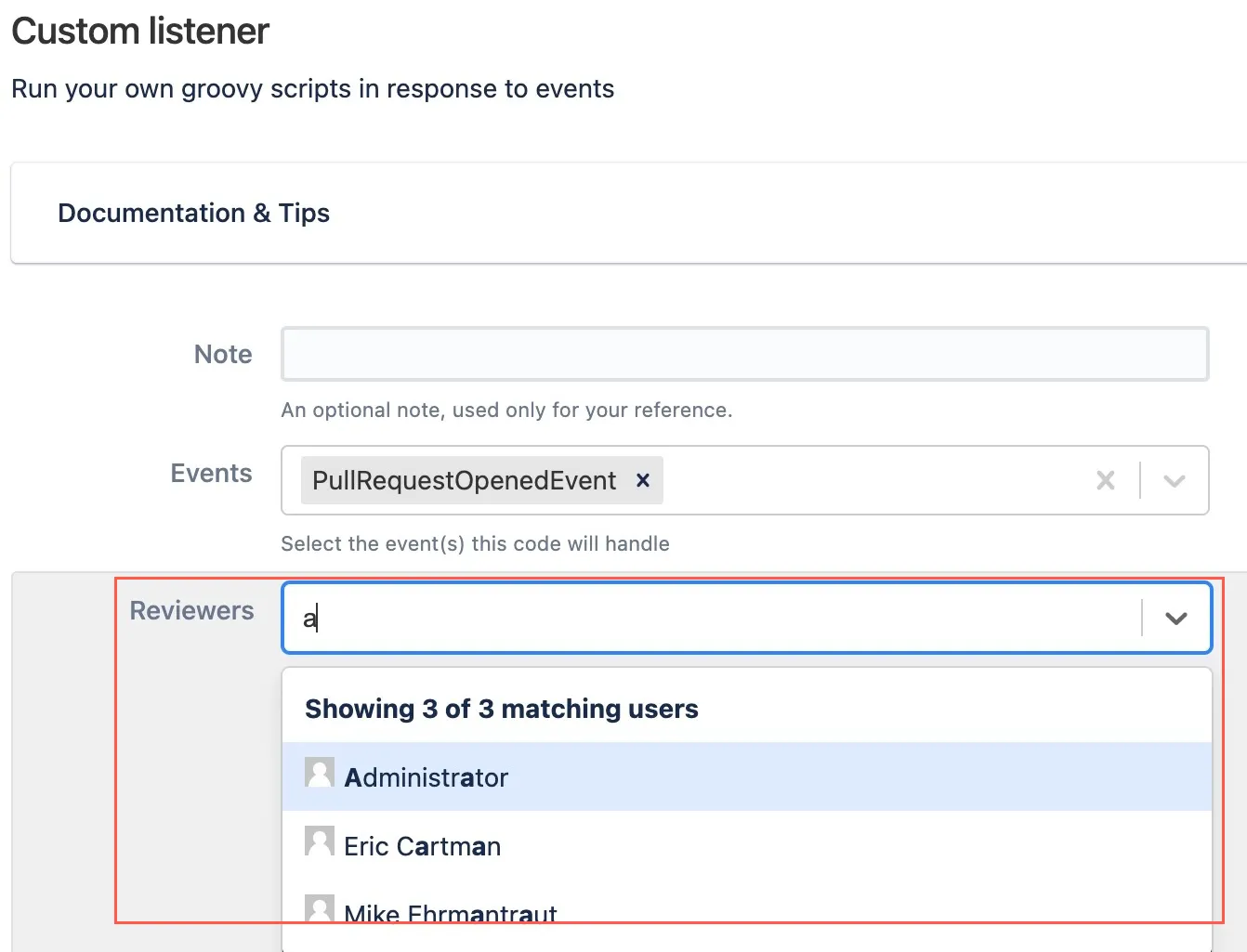

The form field/s automatically display. In the example image above, the Reviewers form field displays.

Transforming an Existing Inline Script into a Dynamic form

To enable sharing of annotated scripts, all inline scripts must be saved as files.

Navigate to your existing inline script, and add in required annotations.
Note: We recommend you edit the inline script in the Script Console. That way you have full visibility of the form fields.
Copy the script.
Use the Script Editor to open your Scripts Root folder.
Select the folder in which you want to save the script, and click the Create New File icon.
Enter a file name in the Add Groovy File window.
Select Add.
Paste your inline script into the file, and click Save.
This script is now available as a file and can be shared with multiple Bitbucket users on the same instance.

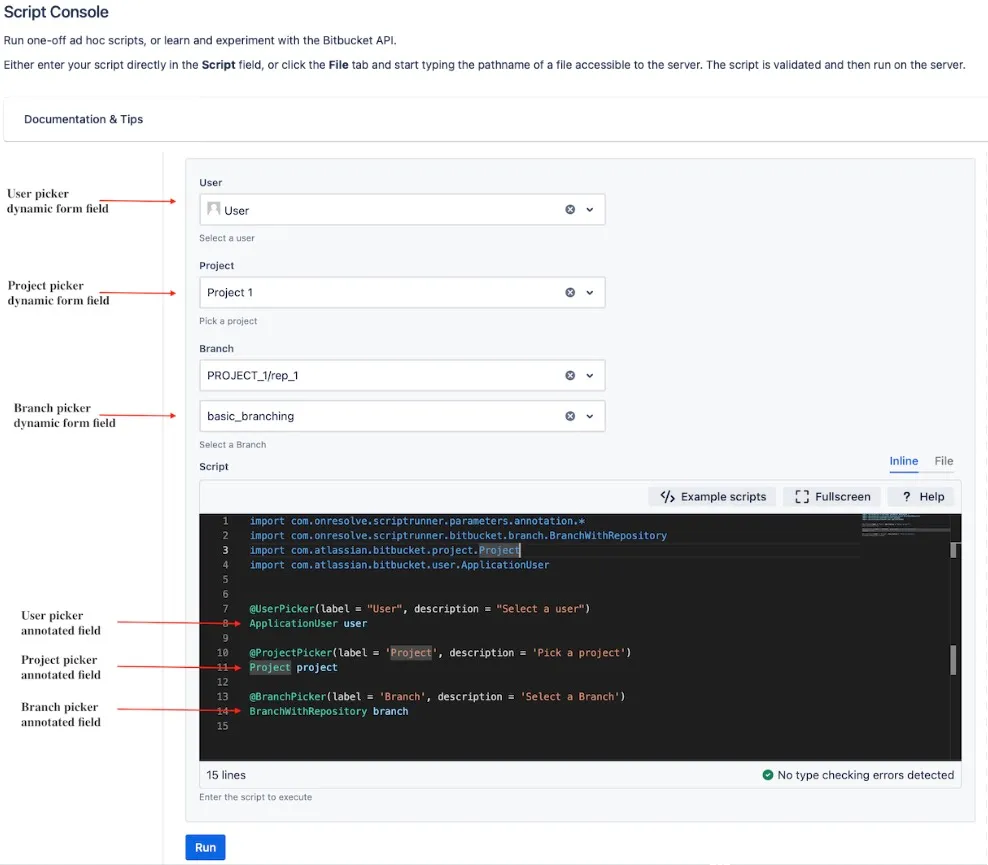

Annotations

You can use the following annotations to construct your dynamic forms.

User Picker

Add a user picker field into your script.

 import com.atlassian.bitbucket.user.ApplicationUser
import com.onresolve.scriptrunner.parameters.annotation.*

@UserPicker(label = "User", description = "Select a user")
ApplicationUser user

User multi-pickers are also supported.

import com.atlassian.bitbucket.user.ApplicationUser
import com.onresolve.scriptrunner.parameters.annotation.*

@UserPicker(label = "Users", description = "Select users", multiple = true)
List<ApplicationUser> users

Short Text

Add a short text field to a script.

import com.onresolve.scriptrunner.parameters.annotation.ShortTextInput

@ShortTextInput(label = "Branch name", description = "Enter the branch name")
String branchName

Select List

Add a single-select list with configurable options.

import com.onresolve.scriptrunner.parameters.annotation.Select
import com.onresolve.scriptrunner.parameters.annotation.meta.Option

@Select(
        label = "Color",
        description = "Select color",
        options = [
            @Option(label = "Green", value = "green"),
            @Option(label = "Blue", value = "blue"),
        ]
    )
String value

Multi-select lists are also supported.

import com.onresolve.scriptrunner.parameters.annotation.Select
import com.onresolve.scriptrunner.parameters.annotation.meta.Option

@Select(
        label = "Colors",
        description = "Select colors",
        options = [
            @Option(label = "Green", value = "green"),
            @Option(label = "Blue", value = "blue"),
            @Option(label = "Red", value = "red"),
        ],
        multiple = true
    )
List<String> values

Using `optionsGenerator` in a select list

If you cannot find an annotation that is suitable for your purpose, you can provide an optionsGenerator closure when using @Select to generate a list of custom options. For example:

import com.onresolve.scriptrunner.parameters.annotation.Select

@Select(
                label = "Color",
                description = "Select color",
                optionsGenerator = {
                    [
                        ['yellow', 'Yellow'],
                        ['red', 'Red'],
                    ]
                }
String value

CAUTION: You must return a List of Lists containing exactly two String elements:

The first element must be the option value (that is, what is injected into your variable).
The second element must be the display value.

The closure code must be completely self-contained, apart from import declarations. Therefore, you cannot use variables or methods declared outside the closure.

We recommend you keep the contents of these closures short and simple.

The following is a Jira example, using optionsGenerator, that lists all projects in a specific project category:

import com.atlassian.jira.component.ComponentAccessor
import com.onresolve.scriptrunner.parameters.annotation.Select

@Select(
                label = "Project",
                description = "Select the Space project",
                optionsGenerator = {
                    def projectManager = ComponentAccessor.projectManager
                    def category = projectManager.getProjectCategoryObjectByName('Space Projects')
                    projectManager.getProjectObjectsFromProjectCategory(category.id).collect { project ->
                        [project.key, project.name]
                    }
                }
            )
String value

Checkbox

Add a checkbox to a script.

import com.onresolve.scriptrunner.parameters.annotation.Checkbox

@Checkbox(label = "Delete branch", description = "Select the checkbox to delete the branch")
Boolean shouldDeleteBranch

Project Picker

Add a project picker to a script.

import com.atlassian.bitbucket.project.Project
import com.onresolve.scriptrunner.parameters.annotation.ProjectPicker

@ProjectPicker(label = 'Project', description = 'Pick a project')
Project project

Project multi-pickers are also supported.

import com.atlassian.bitbucket.project.Project
import com.onresolve.scriptrunner.parameters.annotation.ProjectPicker

@ProjectPicker(label = 'Projects', description = 'Pick some projects', multiple = true)
List<Project> projects

Repository Picker

Add a repository picker to a script.

import com.atlassian.bitbucket.repository.Repository
import com.onresolve.scriptrunner.parameters.annotation.RepositoryPicker

@RepositoryPicker(label = 'Repository', description = 'Select a repository')
Repository repository

Repository multi-pickers are also supported.

import com.atlassian.bitbucket.repository.Repository
import com.onresolve.scriptrunner.parameters.annotation.RepositoryPicker

@RepositoryPicker(label = 'Repositories', description = 'Select repositories', multiple = true)
List<Repository> repositories

Branch Picker

Add a branch picker to a script.

import com.onresolve.scriptrunner.bitbucket.branch.BranchWithRepository
import com.onresolve.scriptrunner.parameters.annotation.BranchPicker

@BranchPicker(label = 'Branch', description = 'Select a Branch')
BranchWithRepository branch

Tag Picker

Add a tag picker to a script.

import com.onresolve.scriptrunner.bitbucket.tag.TagWithRepository
import com.onresolve.scriptrunner.parameters.annotation.TagPicker

@TagPicker(label = 'Tag', description = 'Select a tag')
TagWithRepository tag
